Volkswagen Multivan T5 SWB 2.5 TDI 131HP Specs

(2004 - 2006) - Technical Specifications for Years 2004, 2005, 2006
★★★★★ ★★★★★ Own this car? Rate it!
×
Own this car? Rate it!
Comfort ★★★★★
Economy ★★★★★
Reliability ★★★★★
Performance ★★★★★
Handling ★★★★★
Cost of maintenance ★★★★★
Recommend to a friend? ★★★★★

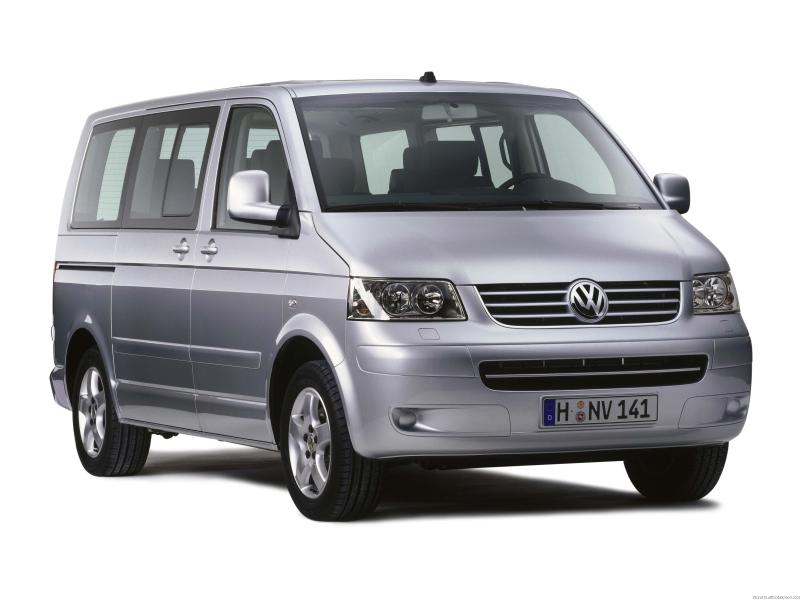

Volkswagen Multivan T5 SWB image

Key Specs

Diesel
150.2 cu-in
2461 cm3
Inline 5
129 HP
131 PS / 96 kW
250 lb-ft
340 Nm
104 Mph
168 km/h

Volkswagen Multivan T5 SWB 2.5 TDI 131HP Body, Model and Production details Volkswagen Multivan T5 SWB 2.5 TDI 131HP Body, Model and Production details

Generation : Multivan T5 - 2004 New Model
Body : Bus
Num. of Doors : 5 doors

Volkswagen Multivan T5 SWB 2.5 TDI 131HP Engine Technical Data Volkswagen Multivan T5 SWB 2.5 TDI 131HP Engine Technical Data

Engine type - Number of cylinders : Inline 5
Engine Code : VW EA153 BNZ
Fuel type : Diesel
Fuel System : Unit-injection piezo injector (VAG PD)
Engine Alignment : Transverse
Engine Position : Front
Engine displacement : 150.2 cu-in / 2461 cm3
Bore x Stroke : 3.19 x 3.76 inches
81.0 x 95.5 mm
Number of valves : 10 Valves
Aspiration : Turbo Intercooler
Compression Ratio : 18.5
Horsepower : 129 HP / 131 PS / 96 kW
@ 3500 rpm
Maximum torque : 250 lb-ft / 340 Nm
@ 2000 rpm
Drive wheels - Traction - Drivetrain : FWD
Transmission Gearbox - Number of speeds :
6 speed Manual

Volkswagen Multivan T5 SWB 2.5 TDI 131HP Fuel Consumption (Economy), Emissions and Range Volkswagen Multivan T5 SWB 2.5 TDI 131HP Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC : 22 MPG
10.9 L/100 km
26 MPG UK
Fuel Consumption - Economy - Open road NEDC : 35 MPG
6.7 L/100 km
42 MPG UK
Fuel Consumption - Economy - Combined NEDC : 29 MPG
8.2 L/100 km
34 MPG UK
Range : 606 miles / 975 km
Fuel Tank Capacity : 21.1 gallons
80 L
17.6 UK gallons
CO2 emissions : 221 g/km (Volkswagen)
Emission standard : Euro 3 - III
Catalytic converter : Oxy Catalytic Converter

Volkswagen Multivan T5 SWB 2.5 TDI 131HP Performance Volkswagen Multivan T5 SWB 2.5 TDI 131HP Performance

Top Speed : 104 Mph / 168 km/h
Acceleration 0 to 100 km/h (0 to 62 mph) : 15.3 s
EU driving noise : 75 dB

Volkswagen Multivan T5 SWB 2.5 TDI 131HP Size, Dimensions, Aerodynamics and Weight Volkswagen Multivan T5 SWB 2.5 TDI 131HP Size, Dimensions, Aerodynamics and Weight

Wheelbase : 118.11 inches / 300.0 cm
Length : 192.52 inches / 489.0 cm
Width : 74.96 inches / 190.4 cm
Width with mirrors : 89.88 inches / 228.3 cm
Height : 76.54 inches / 194.4 cm
Front Axle : 64.09 inches / 162.8 cm
Rear Axle : 64.09 inches / 162.8 cm
Cargo box inside height : 54.88 inches / 139.4 cm
Cargo width : 66.61 inches / 169.2 cm
Max. width at wheelhouse : 48.98 inches / 124.4 cm
Rear door width : 58.46 inches / 148.5 cm
Rear door height : 50.98 inches / 129.5 cm
Side door width : 40.16 inches / 102.0 cm
Side door height : 50.55 inches / 128.4 cm
Max. Towing Capacity Weight : 5512 lbs / 2500 kg
Aerodynamic drag coefficient - Cx : -
Curb Weight : 5179 lbs / 2349 kg
Weight/Power Output Ratio : 17.9 kg/hp

Volkswagen Multivan T5 SWB 2.5 TDI 131HP Interior size, Dimensions Volkswagen Multivan T5 SWB 2.5 TDI 131HP Interior size, Dimensions

Num. of Seats : 6-7 seats
Trunk / Boot capacity : -

Volkswagen Multivan T5 SWB 2.5 TDI 131HP Brakes, Tires, Steering and Suspension Volkswagen Multivan T5 SWB 2.5 TDI 131HP Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions : Vented Discs
(12.13 inches / 308 mm)
Rear Brakes - Disc dimensions : Vented Discs
(11.57 inches / 294 mm)
Front Tyres - Rims dimensions : 215/65 R16
Rear Tyres - Rims dimensions : 215/65 R16
Turning circle : 39 feet / 11.9 m
Front Suspension : Independent. MacPherson. Coil Springs. Anti-roll bar.
Rear Suspension : Semi-trailing arms. Coil Springs. Anti-Roll Bar.
If you found an error in these specifications submit your correction here

How fast is a Volkswagen Multivan T5 SWB 2.5 TDI 131HP?
The Volkswagen Multivan T5 SWB 2.5 TDI 131HP can reach 0 to 100 km/h (0 to 62 mph) in 15.3 seconds and has a top speed of 168 km/h / 104 mph.

How many horsepower (hp) does a 2004 Volkswagen Multivan T5 SWB 2.5 TDI 131HP have?
The 2004 Volkswagen Multivan T5 SWB 2.5 TDI 131HP has 131 PS / 129 bhp / 96 kW.

How much does a Volkswagen Multivan T5 SWB 2.5 TDI 131HP weighs?
The Volkswagen Multivan T5 SWB 2.5 TDI 131HP weighs 2349 Kg / 5179 lbs.

What is the Volkswagen Multivan T5 SWB 2.5 TDI 131HP gas mileage?
The Volkswagen Multivan T5 SWB 2.5 TDI 131HP gas mileage is City NEDC 22 MPG / 10.9 L/100 km / 26 MPG UK / Open road NEDC 35 MPG / 6.7 L/100 km / 42 MPG UK / Combined NEDC 29 MPG / 8.2 L/100 km / 34 MPG UK.

What engine is in Volkswagen Multivan T5 SWB 2.5 TDI 131HP?
The Volkswagen Multivan T5 SWB 2.5 TDI 131HP has a Inline 5, Diesel engine with 2461 cm3 / 150.2 cu-in capacity.

What are the dimensions of the Volkswagen Multivan T5 SWB 2.5 TDI 131HP?
The Volkswagen Multivan T5 SWB 2.5 TDI 131HP is 192.52 inches / 489.0 cm long, 74.96 inches / 190.4 cm wide, and 76.54 inches / 194.4 cm tall, with a wheelbase of 118.11 inches / 300.0 cm.

How much cargo space does a Volkswagen Multivan T5 SWB 2.5 TDI 131HP have?
The Volkswagen Multivan T5 SWB 2.5 TDI 131HP offers - cu-ft / - L of trunk space.
