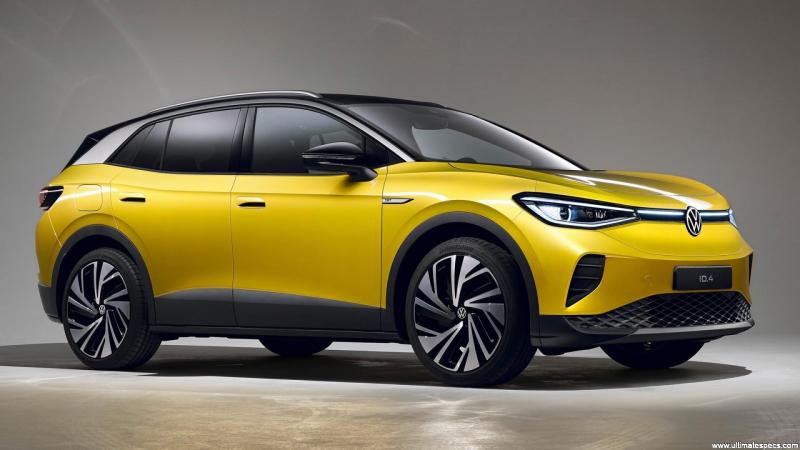

Volkswagen ID.4 Pro 4MOTION 77kWh 286HP Specs

(2023 - ) - Technical Specifications for Years 2023, 2024, 2025

Electric

282 HP
286 PS / 210 kW

500 lb-ft
679 Nm

112 Mph
180 km/h

342 miles
550 km

Volkswagen ID.4 Pro 4MOTION 77kWh 286HP Body, Model and Production details

Generation :	ID.4 MK1

Body :	SUV

Num. of Doors :	5 doors


Volkswagen ID.4 Pro 4MOTION 77kWh 286HP Engine Technical Data

Engine Type :	Electric

Total electric power :	282 HP / 286 PS / 210 kW

Total electric torque :	500 lb-ft / 679 Nm

Horsepower :	282 HP / 286 PS / 210 kW

Maximum torque :	500 lb-ft / 679 Nm

Number of electric engines:	2

Electric engine 1 type:	PSM - Permanent Magnet Synchronous Motor

Rear Axle Electric Engine Torque:	401 lb-ft / 545 Nm

Electric engine 2 type:	ASM - Asynchronous Motor

Front Axle Electric Engine Torque:	98 lb-ft / 134 Nm

Drive wheels - Traction - Drivetrain :	AWD

Transmission Gearbox - Number of speeds :	1 speed Reduction Gear

Range (WLTP):

342 miles / 550 km

Average energy consumption WLTP:

3.88 miles/ kWh (16 kWh / 100 km)

Battery type :

Lithium-ion

Fast charge current :

135.0 kW

Battery capacity :

82.0 kWh

Net battery capacity :

77.0 kWh

CO2 emissions WLTP :

0 g/km (Volkswagen)

Volkswagen ID.4 Pro 4MOTION 77kWh 286HP Performance

Top Speed :	112 Mph / 180 km/h

Acceleration 0 to 60 mph (0 to 96 Km/h) :	6.3 s

Acceleration 0 to 100 km/h (0 to 62 mph) :	6.7 s


Volkswagen ID.4 Pro 4MOTION 77kWh 286HP Size, Dimensions, Aerodynamics and Weight

Wheelbase :	109.09 inches / 277.1 cm

Length :	180.47 inches / 458.4 cm

Width :	72.91 inches / 185.2 cm

Width with mirrors :	82.99 inches / 210.8 cm

Height :	64.33 inches / 163.4 cm

Front Axle :	62.52 inches / 158.8 cm

Rear Axle :	61.57 inches / 156.4 cm

Ground clearance :	6.42 inches / 16.3 cm

Approach angle (deg) :	16.5°

Breakover (Rampover) angle (deg) :	13.8°

Departure angle (deg) :	18.3°

Max. Towing Capacity Weight :	2205 lbs / 1000 kg

Aerodynamic drag coefficient - Cx :	0.28

Curb Weight :	4753 lbs / 2156 kg

Weight/Power Output Ratio :	7.5 kg/hp


Volkswagen ID.4 Pro 4MOTION 77kWh 286HP Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	19.2 cu-ft / 543 L

Trunk / Boot First Row :	55.6 cu-ft / 1575 L


Volkswagen ID.4 Pro 4MOTION 77kWh 286HP Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- inches / - mm)

Rear Brakes - Disc dimensions :	Drums (- inches / - mm)

Front Tyres - Rims dimensions :	235/55 R19

Rear Tyres - Rims dimensions :	255/50 R19

Front Wheels Width :	8.0"

Rear Wheels Width :	8.0"

Turning circle :	37.7 feet / 11.5 m

Front Suspension :	Coil Springs.

Rear Suspension :	Coil Springs.
