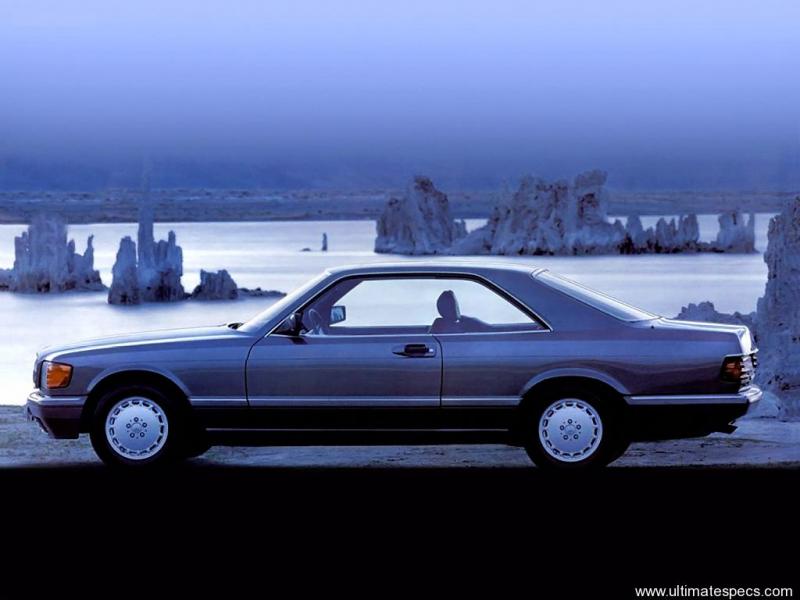

Mercedes Benz W126 380 SEC Specs

(1981 - 1985) - Technical Specifications for Years 1981, 1982, 1983, 1984, 1985
With a maximum top speed of 131 mph (210 km/h), a curb weight of 3494 lbs (1585 kgs), the W126 380 SEC has a naturally-aspirated - V8 cylinder engine, Petrol motor.
This engine produces a maximum power of 204 PS (201 bhp - 150 kW) at 5250 rpm and a maximum torque of 315 Nm (232 lb.ft) at 3250 rpm. The power is transmitted to the road by the rear wheel drive (RWD) with a 5 speed Automatic gearbox.
About chassis details responsible for road holding, handling behaviour and ride confort, the W126 Stock tire sizes are 205 / 70 on 14 inch rims at the front, and 205 / 70 on 14 inch rims at the rear. For stopping power, the W126 380 SEC braking system includes Discs at the front and Discs at the rear.
The W126 model is a car manufactured by Mercedes Benz, with 2 doors and 4 seats, sold new from year 1981 to 1985, and available after that as a used car.

Mercedes Benz W126 380 SEC Engine Technical Data Mercedes Benz W126 380 SEC Engine Technical Data

Engine type - Number of cylinders : - V8
Engine Code : -
Fuel type :
Petrol
Fuel System : Inj. mec. Bosch
Engine Alignment : Longitudinal
Engine size - Displacement - Engine capacity : 3839 cm3 or 234.3 cu-in
Bore x Stroke : 88 x 78.9 mm
3.46 x 3.07 inches
Number of valves : 16 Valves
Aspiration : N/A
Compression Ratio : 9.4
Maximum power - Output - Horsepower : 204 PS or 201 bhp or 150 kW @ 5250 rpm
Maximum torque : 315 Nm or 232 lb.ft @ 3250 rpm
Drive wheels - Traction - Drivetrain : RWD
Transmission Gearbox - Number of speeds :

Mercedes Benz W126 380 SEC Fuel Consumption (Economy), Emissions and Range Mercedes Benz W126 380 SEC Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined: - L/100km
Fuel Consumption - Economy - Extra Urban: 8.7 L/100km
32 mpg UK / 27 mpg US
Fuel Consumption - Economy - Highway: 10.8 L/100km
26 mpg UK / 22 mpg US
Fuel Consumption - Economy - City: 13.9 L/100km
20 mpg UK / 17 mpg US
Fuel Tank Capacity : 90 L
19.8 UK gallons
23.8 US gallons
CO2 emissions : - g/Km

Mercedes Benz W126 380 SEC Performance Mercedes Benz W126 380 SEC Performance

Top Speed : 210 km/h or 131 Mph
Acceleration 0 to 100 km/h (0 to 62 mph) : - s

Mercedes Benz W126 380 SEC Size, Dimensions, Aerodynamics and Weight Mercedes Benz W126 380 SEC Size, Dimensions, Aerodynamics and Weight

Num. of Doors : 2
Wheelbase : 285 cm or 112.2 inches
Length : 491 cm or 193.31 inches
Width : 182.8 cm or 71.97 inches
Height : 140.6 cm or 55.35 inches
Num. of Seats : 4
Aerodynamic drag coefficient - Cx : -
Front Brakes - Disc dimensions : Discs (- mm)
Rear Brakes - Dics dimensions : Discs (- mm)
Front Tyres - Rims dimensions : 205/70 R14
Rear Tyres - Rims dimensions : 205/70 R14
Curb Weight : 1585 kg OR 3494 lbs
Weight-Power Output Ratio : 7.8 kg/hp
Trunk / Boot capacity : - L

Mercedes Benz W126 380 SEC Service Light Reset

not available yet
