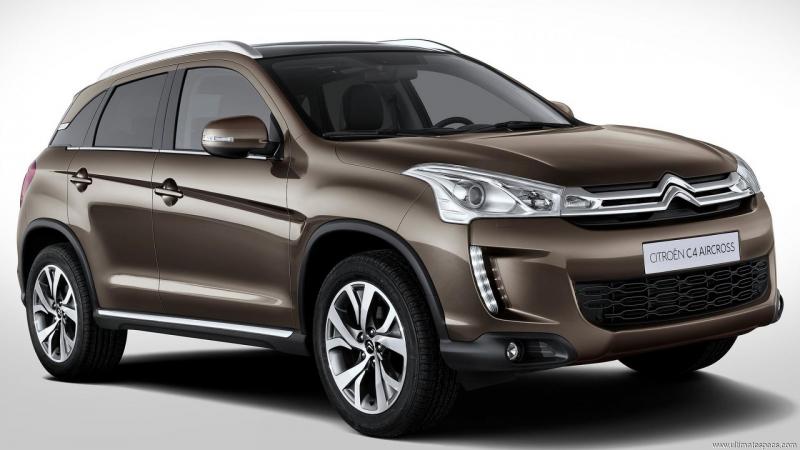

Citroen C4 Aircross HDi 150 2WD Exclusive Specs

(2012 - ) Technical Specifications

Diesel

109.7 cu-in
1798 cm³

Inline 4

148 HP
150 PS / 110 kW

221 lb-ft
300 Nm

124 Mph
200 km/h

Citroen C4 Aircross HDi 150 2WD Exclusive Body, Model and Production details

Generation :	C4 (Typ N / B7)

Body :	TT

Num. of Doors :	5 doors


Citroen C4 Aircross HDi 150 2WD Exclusive Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Diesel

Fuel System :	Direct Injection.

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	109.7 cu-in / 1798 cm³

Bore x Stroke :	3.27 x 3.27 inches 83.0 x 83.1 mm

Number of valves :	16 Valves

Aspiration :	Turbo (TGV) + Intercooler

Compression Ratio :	14.9

Horsepower :	148 HP / 150 PS / 110 kW @ 4000 rpm

Maximum torque :	221 lb-ft / 300 Nm @ 2000-3000 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Manual Transmission Relations 1st Gear Ratio: 2nd Gear Ratio: 3rd Gear Ratio: 4th Gear Ratio: 5th Gear Ratio: 6th Gear Ratio: Reverse Gear Ratio: 9.0

Clutch Type :	Dry single disc clutch


Citroen C4 Aircross HDi 150 2WD Exclusive Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	36 MPG 6.6 L/100 km 43 MPG UK

Fuel Consumption - Economy - Open road NEDC :	50 MPG 4.7 L/100 km 60 MPG UK

Fuel Consumption - Economy - Combined NEDC :	44 MPG 5.4 L/100 km 52 MPG UK

Range :	725 miles / 1166 km

Fuel Tank Capacity :	16.6 gallons 63 L 13.9 UK gallons

CO2 emissions :	142 g/km (Citroen)

Emission standard :	Euro V

Citroen C4 Aircross HDi 150 2WD Exclusive Performance

Top Speed :	124 Mph / 200 km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	10.8 s

Acceleration 0 to 1000m :	32.0 s


Citroen C4 Aircross HDi 150 2WD Exclusive Size, Dimensions, Aerodynamics and Weight

Wheelbase :	105.12 inches / 267.0 cm

Length :	170.91 inches / 434.1 cm

Width :	70.83 inches / 179.9 cm

Height :	63.98 inches / 162.5 cm

Front Axle :	60.83 inches / 154.5 cm

Rear Axle :	60.63 inches / 154.0 cm

Ground clearance :	6.61 inches / 16.8 cm

Approach angle (deg) :	19.0°

Breakover (Rampover) angle (deg) :	31.0°

Departure angle (deg) :	19.0°

Aerodynamic drag coefficient - Cx :	0.34

Curb Weight :	3318 lbs / 1505 kg

Weight/Power Output Ratio :	10 kg/hp


Citroen C4 Aircross HDi 150 2WD Exclusive Interior size, Dimensions

Num. of Seats :	5 seats

Seat distribution :	2+3

Trunk / Boot capacity :	14.7 cu-ft / 416 L

Trunk / Boot First Row :	42.1 cu-ft / 1193 L


Citroen C4 Aircross HDi 150 2WD Exclusive Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (11.57 inches / 294 mm)

Rear Brakes - Disc dimensions :	Discs (11.89 inches / 302 mm)

Front Tyres - Rims dimensions :	225/55 R18

Rear Tyres - Rims dimensions :	225/55 R18

Steering :	Rack and pinion Electric

Steering wheel lock-to-lock :	3.3 turns

Steering ratio :	16.6

Front Suspension :	MacPherson struts. Coil springs.

Rear Suspension :	Coil Springs.
