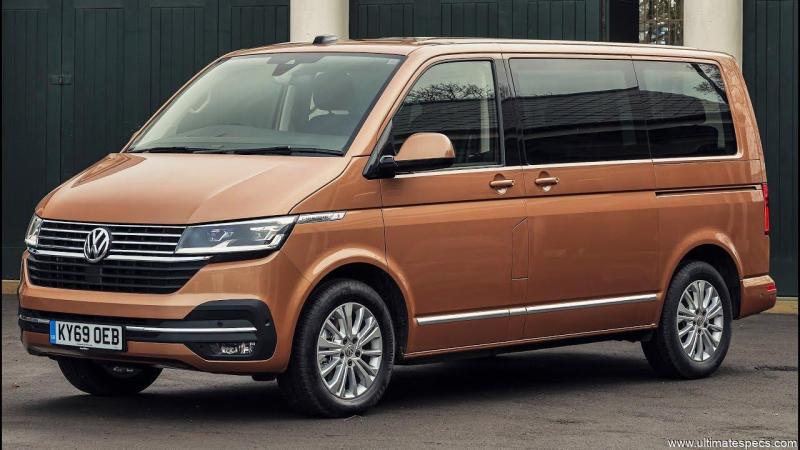

Volkswagen Caravelle T6.1 L1H1 2.0 TDI 150HP Body, Model and Production details
|
|
| Generation : | Caravelle T6.1 - 2019 Facelift |
| Body : | Van |
| Num. of Doors : | 4 doors |
Volkswagen Caravelle T6.1 L1H1 2.0 TDI 150HP Engine Technical Data
|
|
| Engine type - Number of cylinders : | Inline 4 |
| Engine Code : | - |
| Fuel type : | Diesel |
| Fuel System : | Common Rail |
| Engine Alignment : | Transverse |
| Engine Position : | Front |
| Engine displacement : | 120.1 cu-in / 1968 cm3 |
| Bore x Stroke : |
3.19 x 3.76 inches 81.0 x 95.5 mm |
| Number of valves : | 16 Valves |
| Aspiration : | Turbo Intercooler |
| Compression Ratio : | 16.0 |
| Horsepower : |
148 HP / 150 PS / 110 kW @ 3250 rpm |
| Maximum torque : |
250 lb-ft / 340 Nm @ 1500 rpm |
| Drive wheels - Traction - Drivetrain : | FWD |
| Transmission Gearbox - Number of speeds : |
6 speed Manual
|
Volkswagen Caravelle T6.1 L1H1 2.0 TDI 150HP Fuel Consumption (Economy), Emissions and Range
|
|
| Fuel Consumption - Economy - City NEDC : |
31 MPG 7.6 L/100 km 37 MPG UK |
| Fuel Consumption - Economy - Open road NEDC : |
42 MPG 5.6 L/100 km 50 MPG UK |
| Fuel Consumption - Economy - Combined NEDC : |
37 MPG 6.3 L/100 km 45 MPG UK |
| Range : | 690 miles / 1111 km |
| Fuel Tank Capacity : |
18.5 gallons 70 L 15.4 UK gallons |
| CO2 emissions : | 167 g/km (Volkswagen) |
| CO2 emissions WLTP : | - g/km (Volkswagen) |
| Catalytic converter : | Particle Filter |
Volkswagen Caravelle T6.1 L1H1 2.0 TDI 150HP Performance
|
|
| Top Speed : | 113 Mph / 182 km/h |
| Acceleration 0 to 100 km/h (0 to 62 mph) : | 11.9 s |
Volkswagen Caravelle T6.1 L1H1 2.0 TDI 150HP Size, Dimensions, Aerodynamics and Weight
|
|
| Wheelbase : | 118.11 inches / 300.0 cm |
| Length : | 193.07 inches / 490.4 cm |
| Width : | 74.96 inches / 190.4 cm |
| Height : | 78.35 inches / 199.0 cm |
| Ground clearance : | 7.91 inches / 20.1 cm |
| Max. Towing Capacity Weight : | 5512 lbs / 2500 kg |
| Aerodynamic drag coefficient - Cx : | - |
| Curb Weight : | 4667 lbs / 2117 kg |
| Dry Weight : | 4403 lbs / 1997 kg |
| Weight/Power Output Ratio : | 14.1 kg/hp |
Volkswagen Caravelle T6.1 L1H1 2.0 TDI 150HP Interior size, Dimensions
|
|
| Num. of Seats : | 9 seats |
| Trunk / Boot capacity : | - |
Volkswagen Caravelle T6.1 L1H1 2.0 TDI 150HP Brakes, Tires, Steering and Suspension
|
|||
| Front Brakes - Disc dimensions : |
Vented Discs (- inches / - mm) |
||
| Rear Brakes - Disc dimensions : |
Discs (- inches / - mm) |
||
| Front Tyres - Rims dimensions : | 205/65 R16 | ||
| Rear Tyres - Rims dimensions : | 205/65 R16 | ||
| Turning circle : | 39 feet / 11.9 m | ||
| Front Suspension : | Independent. MacPherson. Coil Springs. Anti-roll bar. | ||
| Rear Suspension : | Independent Longitudinal Arms. Coil Springs. Anti-roll bar. | ||
