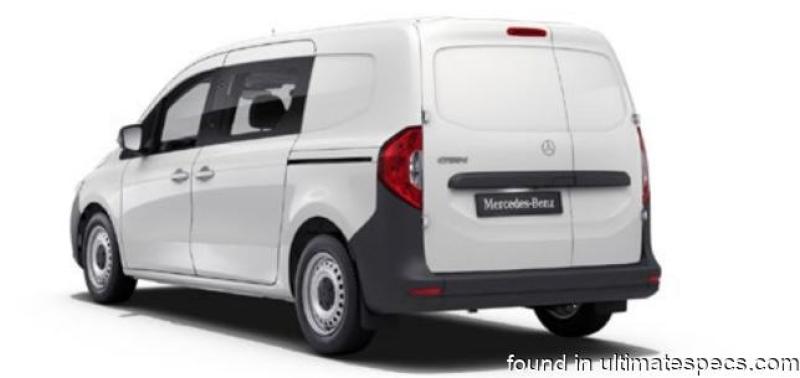

Mercedes Benz Citan L2 Mixto W420 110 CDI Auto Body, Model and Production details
|
|
| Generation : | Citan 2nd Gen. (W420) - 2022 New Model |
| Body : | Van |
| Num. of Doors : | 5 doors |
Mercedes Benz Citan L2 Mixto W420 110 CDI Auto Engine Technical Data
|
|
| Engine type - Number of cylinders : | Inline 4 |
| Engine Code : | OM608.915 (Renault K9K) |
| Fuel type : | Diesel |
| Fuel System : | Common Rail |
| Lubrication : |
See oil information  Mercedes Benz Citan L2 Mixto W420 110 CDI Auto Oil Specifications - Engine oil All Weather: 5W30 OEM: Renault RN17, MB226.52 API/ACEA: ACEA C3 Engine oil capacity (with filter): 5.9 L |
| Engine Alignment : | Transverse |
| Engine Position : | Front |
| Engine displacement : | 89.2 cu-in / 1461 cm3 |
| Bore x Stroke : |
2.99 x 3.17 inches 76 x 80.5 mm |
| Number of valves : | 8 Valves |
| Aspiration : | Turbo Intercooler |
| Compression Ratio : | 15.5 |
| Horsepower : |
94 HP / 95 PS / 70 kW @ 3750 rpm |
| Maximum torque : |
191 lb-ft / 260 Nm @ 1750 rpm |
| Drive wheels - Traction - Drivetrain : | FWD |
| Transmission Gearbox - Number of speeds : |
7 speed Dualclutch Automatic
|
Mercedes Benz Citan L2 Mixto W420 110 CDI Auto Fuel Consumption (Economy), Emissions and Range
|
|
| Fuel Consumption - Economy - Combined WLTP: |
40 MPG 5.9 L/100 km 48 MPG UK |
| Range (WLTP): | 569 miles / 915 km |
| Fuel Tank Capacity : |
14.3 gallons 54 L 11.9 UK gallons |
| CO2 emissions WLTP : | 154 g/km (Mercedes Benz) |
| Catalytic converter : | DPF |
Mercedes Benz Citan L2 Mixto W420 110 CDI Auto Performance
|
|
| Top Speed : | 102 Mph / 164 km/h |
| Acceleration 0 to 100 km/h (0 to 62 mph) : | - s |
Mercedes Benz Citan L2 Mixto W420 110 CDI Auto Size, Dimensions, Aerodynamics and Weight
|
|
| Wheelbase : | 122.05 inches / 310.0 cm |
| Length : | 193.78 inches / 492.2 cm |
| Width : | 73.19 inches / 185.9 cm |
| Width with mirrors : | 85 inches / 215.9 cm |
| Height : | 72.6 inches / 184.4 cm |
| Front Axle : | 62.01 inches / 157.5 cm |
| Rear Axle : | 62.91 inches / 159.8 cm |
| Ground clearance : | 7.28 inches / 18.5 cm |
| Cargo box inside length : | 54.72 inches / 139.0 cm |
| Cargo box inside height : | 49.45 inches / 125.6 cm |
| Cargo width : | 60 inches / 152.4 cm |
| Max. width at wheelhouse : | 49.13 inches / 124.8 cm |
| Loading height : | 23.46 inches / 59.6 cm |
| Rear door width : | 49.61 inches / 126.0 cm |
| Rear door height : | 44.21 inches / 112.3 cm |
| Side door width : | 32.72 inches / 83.1 cm |
| Side door height : | 41.69 inches / 105.9 cm |
| Approach angle (deg) : | 16.9° |
| Breakover (Rampover) angle (deg) : | 13.9° |
| Departure angle (deg) : | 24.4° |
| Max. Towing Capacity Weight : | 3307 lbs / 1500 kg |
| Aerodynamic drag coefficient - Cx : | - |
Mercedes Benz Citan L2 Mixto W420 110 CDI Auto Interior size, Dimensions
|
|
| Num. of Seats : | 5 seats |
| Seat distribution : | 2+3 |
| Trunk / Boot capacity : | 114.8 cu-ft / 3250 L |
Mercedes Benz Citan L2 Mixto W420 110 CDI Auto Brakes, Tires, Steering and Suspension
|
|||
| Front Brakes - Disc dimensions : |
Vented Discs (- inches / - mm) |
||
| Rear Brakes - Disc dimensions : |
Discs (- inches / - mm) |
||
| Front Tyres - Rims dimensions : | 205/60 R16 | ||
| Rear Tyres - Rims dimensions : | 205/60 R16 | ||
| Turning circle : | 43.3 feet / 13.2 m | ||
| Front Suspension : | Independent. MacPherson. Coil Springs. Anti-roll bar. | ||
| Rear Suspension : | Beam Axle. Coil Springs. | ||
