Make

Caravelle T7 SWB Versions

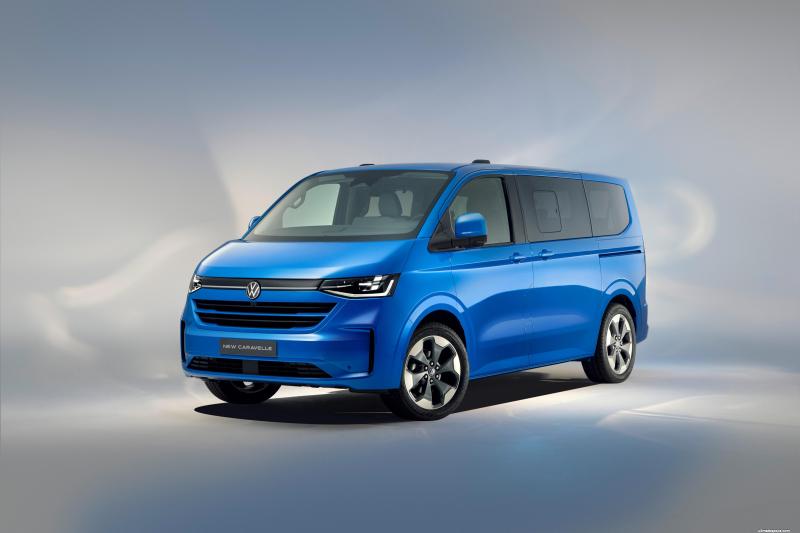

Volkswagen Caravelle T7 SWB e-Caravelle 85kW Specs

(2025 - ) - Technical Specifications for 2025

Electric

134 HP
136 PS / 100 kW

306 lb-ft
415 Nm

70 Mph
112 km/h

199 miles
320 km

Volkswagen Caravelle T7 SWB e-Caravelle 85kW Body, Model and Production details

Generation :	Caravelle T7 - 2025 New Model

Body :	Bus

Num. of Doors :	4 doors


Volkswagen Caravelle T7 SWB e-Caravelle 85kW Engine Technical Data

Engine Type :	Electric

Total electric power :	134 HP / 136 PS / 100 kW

Total electric torque :	306 lb-ft / 415 Nm

Horsepower :	134 HP / 136 PS / 100 kW

Maximum torque :	306 lb-ft / 415 Nm

Number of electric engines:	1

Electric engine 1 type:	PSM - Permanent Magnet Synchronous Motor

Front Axle Electric Engine Power:	134 HP / 136 PS / 100 kW

Front Axle Electric Engine Torque:	306 lb-ft / 415 Nm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	1 speed Reduction Gear


Volkswagen Caravelle T7 SWB e-Caravelle 85kW Battery Technical Data, Charging and Range

Range (WLTP):	199 miles / 320 km

Average energy consumption WLTP:	2.74 miles/ kWh (22.7 kWh / 100 km)

Battery type :	Lithium-ion

Net battery capacity :	63.8 kWh

Volkswagen Caravelle T7 SWB e-Caravelle 85kW Performance

Top Speed :	70 Mph / 112 km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	12.8 s


Volkswagen Caravelle T7 SWB e-Caravelle 85kW Size, Dimensions, Aerodynamics and Weight

Wheelbase :	122.05 inches / 310.0 cm

Length :	198.82 inches / 505.0 cm

Width :	80 inches / 203.2 cm

Width with mirrors :	89.57 inches / 227.5 cm

Height :	77.2 inches / 196.1 cm

Front Axle :	67.91 inches / 172.5 cm

Rear Axle :	67.56 inches / 171.6 cm

Max. width at wheelhouse :	53.11 inches / 134.9 cm

Rear door height :	49.88 inches / 126.7 cm

Side door width :	36.61 inches / 93.0 cm

Side door height :	49.61 inches / 126.0 cm

Approach angle (deg) :	16.5°

Breakover (Rampover) angle (deg) :	13.1°

Departure angle (deg) :	16.4°

Max. Towing Capacity Weight :	4409 lbs / 2000 kg

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	5509 lbs / 2499 kg

Weight/Power Output Ratio :	18.4 kg/hp


Volkswagen Caravelle T7 SWB e-Caravelle 85kW Interior size, Dimensions

Num. of Seats :	9 seats

Trunk / Boot capacity :	16.6 cu-ft / 469 L

Trunk / Boot First Row :	129.7 cu-ft / 3672 L


Volkswagen Caravelle T7 SWB e-Caravelle 85kW Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (12.13 inches / 308 mm)

Rear Brakes - Disc dimensions :	Discs (11.97 inches / 304 mm)

Front Tyres - Rims dimensions :	215/65 R16

Rear Tyres - Rims dimensions :	215/65 R16

Turning circle :	41 feet / 12.5 m

Front Suspension :	MacPherson struts. Coil springs. Anti-roll bar.

Rear Suspension :	Independent. Coil Springs. Anti-roll bar.
