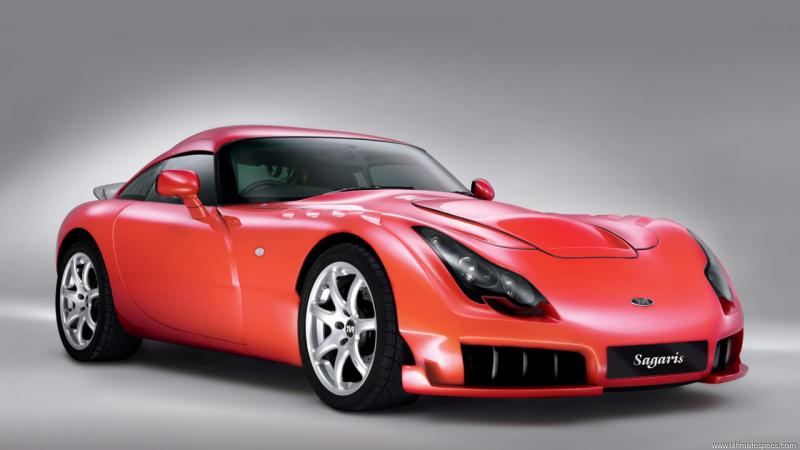

Tvr Sagaris 4.0 Specs

(2006 - ) Technical Specifications

Petrol

243.9 cu-in
3996 cm³

Inline 6

395 HP
400 PS / 294 kW

309 lb-ft
420 Nm

183 Mph
295 km/h

Tvr Sagaris 4.0 Body, Model and Production details

Body :	-

Num. of Doors :	2 doors


Tvr Sagaris 4.0 Engine Technical Data

Engine type - Number of cylinders :	Inline 6

Engine Code :	-

Fuel type :	Petrol

Fuel System :	MPI

Engine Alignment :	Longitudinal

Engine displacement :	243.9 cu-in / 3996 cm³

Bore x Stroke :	3.78 x 3.62 inches 96.0 x 92.0 mm

Number of valves :	24 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	12.2

Horsepower :	395 HP / 400 PS / 294 kW @ 7000 rpm

Maximum torque :	309 lb-ft / 420 Nm @ 5250 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	5 speed Manual


Tvr Sagaris 4.0 Fuel Consumption (Economy), Emissions and Range

Fuel Tank Capacity :	15.1 gallons 57 L 12.5 UK gallons


Tvr Sagaris 4.0 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	92.91 inches / 236.0 cm

Length :	159.84 inches / 406.0 cm

Width :	69.69 inches / 177.0 cm

Height :	46.46 inches / 118.0 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2377 lbs / 1078 kg

Weight/Power Output Ratio :	2.7 kg/hp


Tvr Sagaris 4.0 Interior size, Dimensions

Trunk / Boot capacity :	17.5 cu-ft / 495 L


Tvr Sagaris 4.0 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (12.68 inches / 322 mm)

Rear Brakes - Disc dimensions :	Vented Discs (11.73 inches / 298 mm)

Front Tyres - Rims dimensions :	255/35 R18

Rear Tyres - Rims dimensions :	255/35 R18

Front Suspension :	Independent. Double wishbone. Coil Springs. Anti-roll bar.

Rear Suspension :	Independent. Double wishbone. Anti-roll bar
