Toyota Carina II 1.8i Specs

(1986 - 1988) - Technical Specifications for Years 1986, 1987, 1988

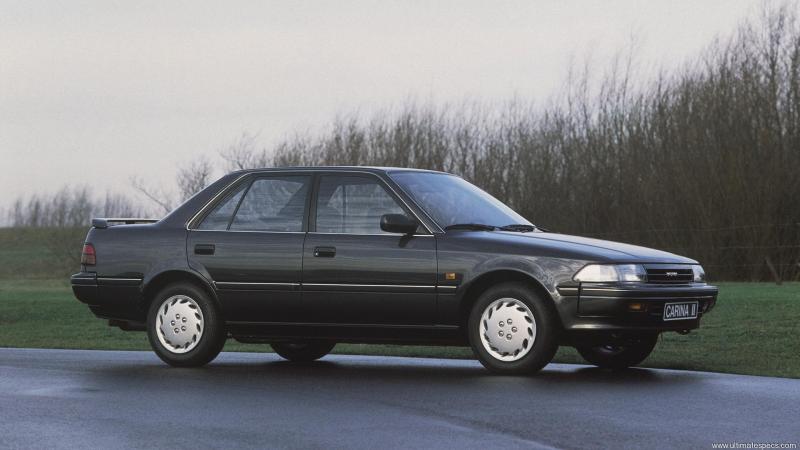

Toyota Carina II image
With a fuel consumption of 7.5 litres/100km - 38 mpg UK - 31 mpg US (Average), 0 to 100 km/h (62mph) in 11.2 seconds, a maximum top speed of 112 mph (180 km/h), a curb weight of 2222 lbs (1008 kgs), the Carina II 1.8i has a naturally-aspirated Inline 4 cylinder engine, Petrol motor, with the engine code 1S-E.
This engine produces a maximum power of 101 PS (100 bhp - 74 kW) at 5200 rpm and a maximum torque of 155 Nm (114 lb.ft) at 4000 rpm. The power is transmitted to the road by the front wheel drive (FWD) with a 5 speed Manual gearbox.
On the topic of chassis details responsible for road holding, handling behavior and ride comfort, the Carina II has Independent. McPherson. coil springs. anti-roll bar front suspension and Coil springs. anti-roll bar rear suspension. Stock tire sizes are 175 / 70 on 13 inch rims at the front, and 175 / 70 on 13 inch rims at the rear. For stopping power, the Carina II 1.8i braking system includes Vented Discs at the front and Drums at the rear.
The Carina II model is a car manufactured by Toyota, sold new from year 1986 until 1988, and available after that as a used car.

Toyota Carina II 1.8i Engine Technical Data Toyota Carina II 1.8i Engine Technical Data

Engine type - Number of cylinders : Inline 4
Engine Code : 1S-E
Fuel type : Petrol
Fuel System : MPI - Toyota EFI
Engine Alignment : Transverse
Engine size - Displacement - Engine capacity : 1832 cm3 or 111.8 cu-in
Bore x Stroke : 80.5 x 90.0 mm
3.15 x 3.54 inches
Number of valves : 8 Valves
Aspiration : N/A
Compression Ratio : 9.0
Maximum power - Output - Horsepower : 101 PS or 100 bhp or 74 kW @ 5200 rpm
Maximum torque : 155 Nm or 114 lb.ft @ 4000 rpm
Drive wheels - Traction - Drivetrain : FWD
Transmission Gearbox - Number of speeds :

Toyota Carina II 1.8i Fuel Consumption (Economy), Emissions and Range Toyota Carina II 1.8i Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined: 7.5 L/100km
38 mpg UK / 31 mpg US
Range : 733 Km or 456 miles
Fuel Tank Capacity : 55 L
12.1 UK gallons
14.5 US gallons
CO2 emissions : 174 g/Km (estimate)

Toyota Carina II 1.8i Performance Toyota Carina II 1.8i Performance

Top Speed : 180 km/h or 112 Mph
Acceleration 0 to 100 km/h (0 to 62 mph) : 11.2 s

Toyota Carina II 1.8i Size, Dimensions, Aerodynamics and Weight Toyota Carina II 1.8i Size, Dimensions, Aerodynamics and Weight

Wheelbase : 252 cm or 99.21 inches
Length : 437 cm or 172.05 inches
Width : 167 cm or 65.75 inches
Height : 136 cm or 53.54 inches
Aerodynamic drag coefficient - Cx : -
Front Brakes - Disc dimensions : Vented Discs (- mm)
Rear Brakes - Dics dimensions : Drums (- mm)
Front Tyres - Rims dimensions : 175/70 R13
Rear Tyres - Rims dimensions : 175/70 R13
Curb Weight : 1008 kg OR 2222 lbs
Weight-Power Output Ratio : 10 kg/hp
Trunk / Boot capacity : 346 L
Front Suspension : Independent. McPherson. coil springs. anti-roll bar
Rear Suspension : Coil springs. anti-roll bar
What engine is in Toyota Carina II 1.8i?
The Toyota Carina II 1.8i has a Inline 4, Petrol engine with 1832 cm3 / 111.8 cu-in capacity.

How many horsepower (hp) does a 1986 Toyota Carina II 1.8i have?
The 1986 Toyota Carina II 1.8i has 101 PS / 100 bhp / 74 kW.

How much does a Toyota Carina II 1.8i weighs?
The Toyota Carina II 1.8i weighs 1008 Kg / 2222 lbs.

What is the top speed of a Toyota Carina II 1.8i?
The Toyota Carina II 1.8i top speed is 180 Km/h / 112 mph.

Is Toyota Carina II 1.8i All Wheel Drive (AWD)?
No, the Toyota Carina II 1.8i is not All Wheel Drive (AWD). It's Front Wheel Drive (FWD).
