Make

750S Versions

- 4.0 V8 SSG (2023)

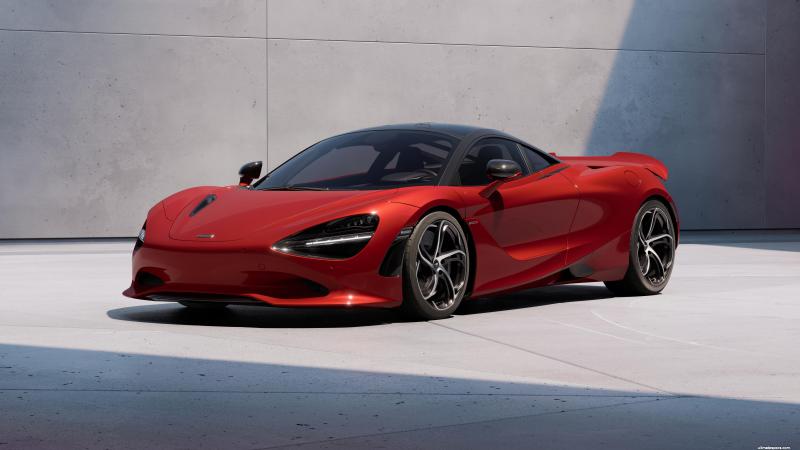

McLaren 750S 4.0 V8 SSG Specs

(2023 - ) - Technical Specifications for Years 2023, 2024, 2025

Key Specs

Petrol

243.7 cu-in
3994 cm³

V 8

740 HP
750 PS / 552 kW

590 lb-ft
800 Nm

206 Mph
332 km/h

19 MPG
12.2 L/100 km
23 MPG UK

Compare with another car

More pictures

McLaren 750S 4.0 V8 SSG Body, Model and Production details

Generation :	750S

Body :	Coupé

Num. of Doors :	2 doors


McLaren 750S 4.0 V8 SSG Engine Technical Data

Engine type - Number of cylinders :	V 8

Engine Code :	M840T

Fuel type :	Petrol

Fuel System :	Direct Injection

Engine Alignment :	Longitudinal

Engine Position :	Mid-engine

Engine displacement :	243.7 cu-in / 3994 cm³

Bore x Stroke :	3.66 x 2.89 inches 93.0 x 73.5 mm

Number of valves :	32 Valves

Aspiration :	Bi-Turbo

Horsepower :	740 HP / 750 PS / 552 kW @ 7500 rpm

Maximum torque :	590 lb-ft / 800 Nm @ 5500 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	7 speed Dualclutch Automatic


McLaren 750S 4.0 V8 SSG Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Low WLTP:	10 MPG 23.3 L/100 km 12 MPG UK

Fuel Consumption - Economy - Medium WLTP:	18 MPG 12.9 L/100 km 22 MPG UK

Fuel Consumption - Economy - High WLTP:	26 MPG 9.2 L/100 km 31 MPG UK

Fuel Consumption - Economy - Extra high WLTP:	23 MPG 10.2 L/100 km 28 MPG UK

Fuel Consumption - Economy - Combined WLTP:	19 MPG 12.2 L/100 km 23 MPG UK

Range (WLTP):	367 miles / 590 km

Fuel Tank Capacity :	19 gallons 72 L 15.8 UK gallons

CO2 emissions WLTP :	276 g/km (McLaren)

Emission standard :	Euro 6

Catalytic converter :	Y

McLaren 750S 4.0 V8 SSG Performance

Top Speed :	206 Mph / 332 km/h

Acceleration 0 to 60 mph (0 to 96 Km/h) :	2.7 s

Acceleration 0 to 100 km/h (0 to 62 mph) :	2.8 s

Acceleration 0 to 200 km/h (0 to 124 mph) :	7.2 s


McLaren 750S 4.0 V8 SSG Size, Dimensions, Aerodynamics and Weight

Wheelbase :	105.12 inches / 267.0 cm

Length :	179.88 inches / 456.9 cm

Width :	75.98 inches / 193.0 cm

Width with mirrors :	85.08 inches / 216.1 cm

Height :	47.09 inches / 119.6 cm

Front Axle :	66.14 inches / 168.0 cm

Rear Axle :	64.13 inches / 162.9 cm

Ground clearance :	4.21 inches / 10.7 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	3062 lbs / 1389 kg

Weight/Power Output Ratio :	1.9 kg/hp


McLaren 750S 4.0 V8 SSG Interior size, Dimensions

Num. of Seats :	2 seats

Trunk / Boot capacity :	7.4 cu-ft / 210 L


McLaren 750S 4.0 V8 SSG Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (15.35 inches / 390 mm)

Rear Brakes - Disc dimensions :	Vented Discs (14.96 inches / 380 mm)

Front Tyres - Rims dimensions :	245/35 R19

Rear Tyres - Rims dimensions :	305/30 R20

Front Wheels Width :	9.0"

Rear Wheels Width :	11.0"

Turning circle :	39.7 feet / 12.1 m

Front Suspension :	Double wishbone. Coil Springs.

Rear Suspension :	Double wishbone. Coil Springs.

What engine is in McLaren 750S 4.0 V8 SSG?
The McLaren 750S 4.0 V8 SSG has a V 8, Petrol engine with 3994 cm³ / 243.7 cu-in capacity.

How many horsepower (hp) does a 2023 McLaren 750S 4.0 V8 SSG have?
The 2023 McLaren 750S 4.0 V8 SSG has 750 PS / 740 bhp / 552 kW.

How much does a McLaren 750S 4.0 V8 SSG weighs?
The McLaren 750S 4.0 V8 SSG weighs 1389 Kg / 3062 lbs.

What is the top speed of a McLaren 750S 4.0 V8 SSG?
The McLaren 750S 4.0 V8 SSG top speed is 332 Km/h / 206 mph.

Is McLaren 750S 4.0 V8 SSG All Wheel Drive (AWD)?
No, the McLaren 750S 4.0 V8 SSG is not All Wheel Drive (AWD). It's Rear Wheel Drive (RWD).

How fast is a McLaren 750S 4.0 V8 SSG?
The McLaren 750S 4.0 V8 SSG can reach 0 to 60 mph in 2.7 seconds and has a top speed of 206 mph.
