Ford Fusion 1.6 TDCi 90 Specs

(2005 - ) Technical Specifications
★★★★★ ★★★★★ Own this car? Rate it!
×
Own this car? Rate it!
Comfort ★★★★★
Economy ★★★★★
Reliability ★★★★★
Performance ★★★★★
Handling ★★★★★
Cost of maintenance ★★★★★
Recommend to a friend? ★★★★★

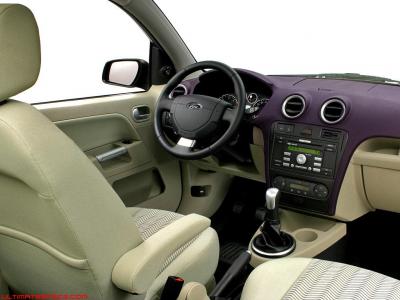

Ford Fusion image

Key Specs

Diesel
95.2 cu-in
1560 cm3
Inline 4
89 HP
90 PS / 66 kW
150 lb-ft
204 Nm
109 Mph
176 km/h

Ford Fusion 1.6 TDCi 90 Body, Model and Production details Ford Fusion 1.6 TDCi 90 Body, Model and Production details

Body : -
Num. of Doors : 5 doors

Ford Fusion 1.6 TDCi 90 Engine Technical Data Ford Fusion 1.6 TDCi 90 Engine Technical Data

Engine type - Number of cylinders : Inline 4
Engine Code : -
Fuel type : Diesel
Fuel System : Common Rail
Engine Alignment : Transverse
Engine displacement : 95.2 cu-in / 1560 cm3
Bore x Stroke : 2.95 x 3.48 inches
75 x 88.3 mm
Number of valves : 16 Valves
Aspiration : Turbo + Intercooler
Horsepower : 89 HP / 90 PS / 66 kW
@ 4000 rpm
Maximum torque : 150 lb-ft / 204 Nm
@ 1750 rpm
Drive wheels - Traction - Drivetrain : FWD
Transmission Gearbox - Number of speeds :
5 speed Manual

Ford Fusion 1.6 TDCi 90 Fuel Consumption (Economy), Emissions and Range Ford Fusion 1.6 TDCi 90 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC : 43 MPG
5.5 L/100 km
51 MPG UK
Fuel Consumption - Economy - Open road NEDC : 59 MPG
4 L/100 km
71 MPG UK
Fuel Consumption - Economy - Combined NEDC : 51 MPG
4.6 L/100 km
61 MPG UK
Range : 608 miles / 978 km
Fuel Tank Capacity : 11.9 gallons
45 L
9.9 UK gallons
CO2 emissions : 122 g/km (Ford)

Ford Fusion 1.6 TDCi 90 Safety Ratings

Euro NCAP
4 stars Euro NCAP Euro NCAP
Euro NCAP
Ford Fusion 1.6 TDCi 90
Euro NCAP Safety Rating
4 stars Euro NCAP
Adult:
Pedestrian:
4 of 5
2 of 5
Tested on: 2003

Ford Fusion 1.6 TDCi 90 Performance Ford Fusion 1.6 TDCi 90 Performance

Top Speed : 109 Mph / 176 km/h
Acceleration 0 to 100 km/h (0 to 62 mph) : 12.9 s

Ford Fusion 1.6 TDCi 90 Size, Dimensions, Aerodynamics and Weight Ford Fusion 1.6 TDCi 90 Size, Dimensions, Aerodynamics and Weight

Wheelbase : 97.83 inches / 248.5 cm
Length : 158.27 inches / 402.0 cm
Width : 67.76 inches / 172.1 cm
Height : 60.39 inches / 153.4 cm
Aerodynamic drag coefficient - Cx : -
Curb Weight : 2562 lbs / 1162 kg
Weight/Power Output Ratio : 12.9 kg/hp

Ford Fusion 1.6 TDCi 90 Interior size, Dimensions Ford Fusion 1.6 TDCi 90 Interior size, Dimensions

Num. of Seats : 5 seats
Trunk / Boot capacity : 11.9 cu-ft / 337 L

Ford Fusion 1.6 TDCi 90 Brakes, Tires, Steering and Suspension Ford Fusion 1.6 TDCi 90 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions : Vented Discs
(- inches / - mm)
Rear Brakes - Disc dimensions : Drums
(- inches / - mm)
Front Tyres - Rims dimensions : 195/60 R15
Rear Tyres - Rims dimensions : 195/60 R15
If you found an error in these specifications submit your correction here

How fast is a Ford Fusion 1.6 TDCi 90?
The Ford Fusion 1.6 TDCi 90 can reach 0 to 100 km/h (0 to 62 mph) in 12.9 seconds and has a top speed of 176 km/h / 109 mph.

How many horsepower (hp) does a 2005 Ford Fusion 1.6 TDCi 90 have?
The 2005 Ford Fusion 1.6 TDCi 90 has 90 PS / 89 bhp / 66 kW.

How much does a Ford Fusion 1.6 TDCi 90 weighs?
The Ford Fusion 1.6 TDCi 90 weighs 1162 Kg / 2562 lbs.

What is the Ford Fusion 1.6 TDCi 90 gas mileage?
The Ford Fusion 1.6 TDCi 90 gas mileage is City NEDC 43 MPG / 5.5 L/100 km / 51 MPG UK / Open road NEDC 59 MPG / 4 L/100 km / 71 MPG UK / Combined NEDC 51 MPG / 4.6 L/100 km / 61 MPG UK.

What engine is in Ford Fusion 1.6 TDCi 90?
The Ford Fusion 1.6 TDCi 90 has a Inline 4, Diesel engine with 1560 cm3 / 95.2 cu-in capacity.

What are the dimensions of the Ford Fusion 1.6 TDCi 90?
The Ford Fusion 1.6 TDCi 90 is 158.27 inches / 402.0 cm long, 67.76 inches / 172.1 cm wide, and 60.39 inches / 153.4 cm tall, with a wheelbase of 97.83 inches / 248.5 cm.

How much cargo space does a Ford Fusion 1.6 TDCi 90 have?
The Ford Fusion 1.6 TDCi 90 offers 11.9 cu-ft / 337 L of trunk space.
