Browse Car Specifications...

Jetta 5 Versions

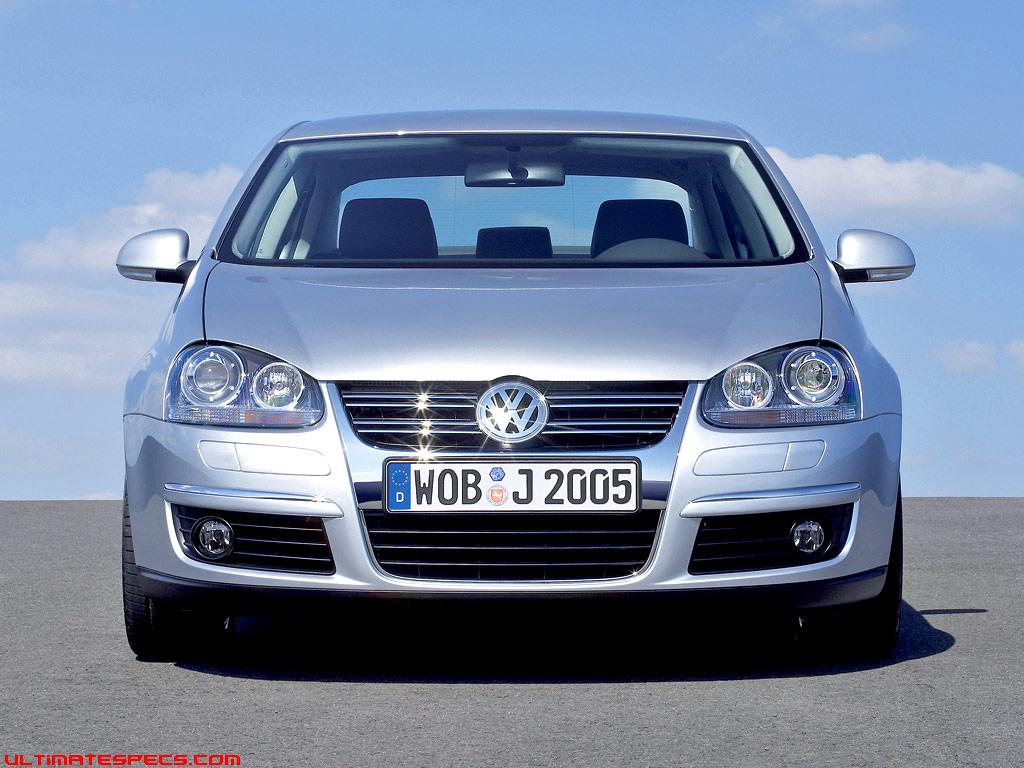

Volkswagen Jetta 5 1.6 FSI Specs

(2005 - 2010) - Technical Specifications for Years 2005, 2006, 2007, 2008, 2009, 2010

Petrol

97.5 cu-in
1598 cm³

Inline 4

114 HP
116 PS / 85 kW

114 lb-ft
155 Nm

121 Mph
194 km/h

Volkswagen Jetta 5 1.6 FSI Body, Model and Production details

Generation :	Jetta 5

Body :	-

Num. of Doors :	4 doors


Volkswagen Jetta 5 1.6 FSI Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Petrol

Fuel System :	Fuel Stratified Injection

Engine Alignment :	Transverse

Engine displacement :	97.5 cu-in / 1598 cm³

Bore x Stroke :	3.01 x 3.42 inches 76.5 x 86.9 mm

Number of valves :	16 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	12.0

Horsepower :	114 HP / 116 PS / 85 kW @ 6000 rpm

Maximum torque :	114 lb-ft / 155 Nm @ 4000 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Manual


Volkswagen Jetta 5 1.6 FSI Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	26 MPG 9 L/100 km 31 MPG UK

Fuel Consumption - Economy - Open road NEDC :	42 MPG 5.6 L/100 km 50 MPG UK

Fuel Consumption - Economy - Combined NEDC :	34 MPG 6.9 L/100 km 41 MPG UK

Range :	495 miles / 797 km

Fuel Tank Capacity :	14.5 gallons 55 L 12.1 UK gallons

CO2 emissions :	166 g/km (Volkswagen)

Volkswagen Jetta 5 1.6 FSI Performance

Top Speed :	121 Mph / 194 km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	11.1 s

Acceleration 0 to 1000m :	32.2 s


Volkswagen Jetta 5 1.6 FSI Size, Dimensions, Aerodynamics and Weight

Wheelbase :	101.5 inches / 257.8 cm

Length :	179.29 inches / 455.4 cm

Width :	70.12 inches / 178.1 cm

Height :	57.44 inches / 145.9 cm

Aerodynamic drag coefficient - Cx :	0.31

Curb Weight :	2802 lbs / 1271 kg

Weight/Power Output Ratio :	11 kg/hp


Volkswagen Jetta 5 1.6 FSI Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	18.6 cu-ft / 527 L


Volkswagen Jetta 5 1.6 FSI Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (11.02 inches / 280 mm)

Rear Brakes - Disc dimensions :	Discs (10.24 inches / 260 mm)

Front Tyres - Rims dimensions :	205/55 R16

Rear Tyres - Rims dimensions :	205/55 R16
