F11 5 Series Touring LCI Versions

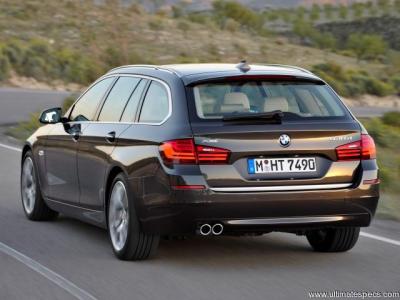

BMW F11 5 Series Touring LCI 535i Aut. Specs

(2013 - ) Technical Specifications

With a fuel consumption of 7.5 litres/100km - 38 mpg UK - 31 mpg US (Average), 0 to 100 km/h (62mph) in 5.8 seconds, a maximum top speed of 155 mph (250 km/h), a curb weight of 4101 lbs (1860 kgs), the F11 5 Series Touring LCI 535i Aut. has a turbocharged Inline 6 cylinder engine, Petrol motor.
This engine produces a maximum power of 306 PS (302 bhp - 225 kW) at 5800-6000 rpm and a maximum torque of 400 Nm (295 lb.ft) at 1200-5000 rpm. The power is transmitted to the road by the rear wheel drive (RWD) with a 8 speed Automatic gearbox.
On the topic of chassis details responsible for road holding, handling behavior and ride comfort, the F11 5 Series Touring LCI has Coil springs. front suspension and Pneumatic. rear suspension. Stock tire sizes are 225 / 55 on 17 inch rims at the front, and 225 / 55 on 17 inch rims at the rear. For stopping power, the F11 5 Series Touring LCI 535i Aut. braking system includes Vented Discs at the front and Vented Discs at the rear.
The F11 5 Series Touring LCI model is a Estate car manufactured by BMW, with 5 doors and 5 seats, sold new from year 2013.

BMW F11 5 Series Touring LCI 535i Aut. Body, Model and Production details

Generation :	F10 LCI

Body :	Estate

Num. of Doors :	5 doors


BMW F11 5 Series Touring LCI 535i Aut. Engine Technical Data

Engine type - Number of cylinders :	Inline 6

Engine Code :	-

Fuel type :	Petrol

Fuel System :	Direct Injection.

Engine Alignment :	Longitudinal

Engine Position :	Front

Engine size - Displacement - Engine capacity :	181.8 cu-in / 2979 cm3

Bore x Stroke :	3.31 x 3.53 inches 84.0 x 89.6 mm

Number of valves :	24 Valves

Aspiration :	Turbo + Intercooler

Compression Ratio :	10.2

Maximum power - Output - Horsepower :	302 HP / 306 PS / 225 kW @ 5800-6000 rpm

Maximum torque :	295 lb-ft / 400 Nm @ 1200-5000 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	8 speed Automatic Transmission Relations 1st Gear Ratio: 8.6 2nd Gear Ratio: 12.9 3rd Gear Ratio: 19.2 4th Gear Ratio: 24.2 5th Gear Ratio: 31.4 6th Gear Ratio: 40.4 7th Gear Ratio: 48.2 8th Gear Ratio: 60.6 Reverse Gear Ratio: 12.2


BMW F11 5 Series Touring LCI 535i Aut. Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined:	31 MPG 7.5 L/100 Km 38 MPG UK

Fuel Consumption - Economy - Open road:	41 MPG 5.8 L/100 Km 49 MPG UK

Fuel Consumption - Economy - City:	23 MPG 10.3 L/100 Km 27 MPG UK

Range :	580 miles / 933 Km

Fuel Tank Capacity :	18.5 gallons 70 L 15.4 UK gallons

CO2 emissions :	174 g/Km (BMW)

Emission standard :	Euro VI

BMW F11 5 Series Touring LCI 535i Aut. Safety Ratings

Euro NCAP	BMW F11 5 Series Touring LCI 535i Aut. Euro NCAP Safety Rating Adult: Pedestrian: Child: Safety Assist: 95 % 78 % 83 % 100 % Tested on: 5 / 2010

BMW F11 5 Series Touring LCI 535i Aut. Performance

Top Speed :	155 Mph / 250 Km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	5.8 s

Acceleration 0 to 1000m :	25.7 s


BMW F11 5 Series Touring LCI 535i Aut. Size, Dimensions, Aerodynamics and Weight

Wheelbase :	116.85 inches / 296.8 cm

Length :	193.19 inches / 490.7 cm

Width :	73.23 inches / 186.0 cm

Height :	57.56 inches / 146.2 cm

Front Axle :	62.99 inches / 160.0 cm

Rear Axle :	64.02 inches / 162.6 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	4101 lbs / 1860 Kg

Weight-Power Output Ratio :	6.1 kg/hp


BMW F11 5 Series Touring LCI 535i Aut. Interior size, Dimensions

Num. of Seats :	5 seats

Seat distribution :	2+3

Trunk / Boot capacity :	19.8 cu-ft / 560 L

Trunk / Boot First Row :	59 cu-ft / 1670 L

Trunk / Boot Second Row :	19.8 cu-ft / 560 L


BMW F11 5 Series Touring LCI 535i Aut. Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (13.7 inches / 348 mm)

Rear Brakes - Dics dimensions :	Vented Discs (13.58 inches / 345 mm)

Front Tyres - Rims dimensions :	225/55 R17

Rear Tyres - Rims dimensions :	225/55 R17

Front Wheels Width :	8,0"

Rear Wheels Width :	8,0"

Steering :	Rack and pinion Electric

Steering ratio :	17.1

Front Suspension :	Coil springs.

Rear Suspension :	Pneumatic.

What engine is in BMW F11 5 Series Touring LCI 535i Aut.?
The BMW F11 5 Series Touring LCI 535i Aut. has a Inline 6, Petrol engine with 2979 cm3 / 181.8 cu-in capacity.

How many horsepower (hp) does a 2013 BMW F11 5 Series Touring LCI 535i Aut. have?
The 2013 BMW F11 5 Series Touring LCI 535i Aut. has 306 PS / 302 bhp / 225 kW.

How much does a BMW F11 5 Series Touring LCI 535i Aut. weighs?
The BMW F11 5 Series Touring LCI 535i Aut. weighs 1860 Kg / 4101 lbs.

What is the top speed of a BMW F11 5 Series Touring LCI 535i Aut.?
The BMW F11 5 Series Touring LCI 535i Aut. top speed is 250 Km/h / 155 mph.

Is BMW F11 5 Series Touring LCI 535i Aut. All Wheel Drive (AWD)?
No, the BMW F11 5 Series Touring LCI 535i Aut. is not All Wheel Drive (AWD). It's Rear Wheel Drive (RWD).
