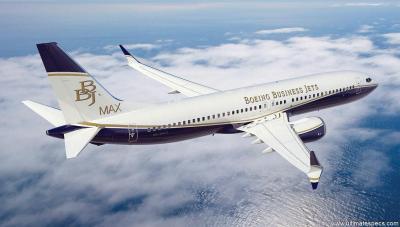

BBJ MAX 8 Technical Data
(2018)© Boeing
Developed from Boeing 737 Next Generation and based on the 737 MAX 8.
BBJ stands for Boeing Business Jet.
Range is with 8 passengers.
Engine CFM LEAP-1B28:
- Take-off maximum thrust: 29,320 lbf,
- Continuous power thrust: 28,690 lbf.
In 2019, the Boeing 737 MAX was grounded after a malfunctioning flight control system that caused 2 aircraft crashes.
The technical data below is for the engine CFM LEAP-1B25.
BBJ stands for Boeing Business Jet.
Range is with 8 passengers.
Engine CFM LEAP-1B28:
- Take-off maximum thrust: 29,320 lbf,
- Continuous power thrust: 28,690 lbf.
In 2019, the Boeing 737 MAX was grounded after a malfunctioning flight control system that caused 2 aircraft crashes.
The technical data below is for the engine CFM LEAP-1B25.
Boeing BBJ MAX 8 General Information |
|
| Manufacturer: | Boeing |
| Model: | BBJ MAX 8 |
| Main Category: | Business jet |
| Category: | Narrow-body business jet |
| Country: | United States |
| ICAO Code: | B38M |
| Production start: | 2018 |
| Production end: | Ongoing |
| Status: | In service |
| Price (new): | US$110.5 million |
Boeing BBJ MAX 8 Flight and Avionics |
|
| Avionics: | Rockwell Collins |
| Winglets: | Split Tip Advanced Technology |
Boeing BBJ MAX 8 Power Plant |
|
| Number of engines: | 2 |
| Engine details: | CFM International LEAP-1B Turbofan |
| Thrust: | 2X 28690 lbf (pound-force) |
Boeing BBJ MAX 8 Performance |
|
| Cruise speed: | 453 knots / 521 mph / 839 km/h |
| Approach Speed: | 250 knots / 288 mph / 463 km/h |
| Landing Speed: | 145 knots / 167 mph / 269 km/h |
Boeing BBJ MAX 8 Range and Fuel Consumption |
|
| Range: | 6465 nautical miles / 7440 miles / 11973 kilometers |
| Climb rate: | 2500 feet / 762 meters |
| Ceiling: | 41000 feet / 12496.8 meters |
Boeing BBJ MAX 8 Exterior Dimensions |
|
| Exterior length: | 39.60 meters / 129 feet 11.06 inches |
| Tail height: | 12.29 meters / 40 feet 3.86 inches |
| Fuselage diameter: | 3.50 meters / 11 feet 5.8 inches |
| Wheelbase: | 15.60 meters / 51 feet 2.17 inches |
| Track: | 5.72 meters / 18 feet 9.2 inches |
| Wing span: | 35.90 meters / 117 feet 9.39 inches |
Boeing BBJ MAX 8 Interior Dimensions |
|
| Passenger Capacity: | 19 |
| Cabin height: | 2.16 meters / 7 feet 1.04 inches |
| Cabin width: | 3.53 meters / 11 feet 6.98 inches |
| Cabin length: | 32.67 meters / 107 feet 2.22 inches |
| Cargo volume: | 565.04 cubic feet / 16.8 cubic meters |
Boeing BBJ MAX 8 Weights and Distances |
|
| Takeoff distance: | 8202.1 feet / 2500 meters |
| Landing distance: | 4921.26 feet / 1500 meters |
| Maximum ramp weight: | 181698 lbs / 82417 kg |
| Maximum takeoff weight: | 181198 lbs / 82190 kg |
| Maximum landing weight: | 152798 lbs / 69308 kg |
| Maximum payload: | 35274 lbs / 16000 kg |
| Fuel capacity: | 10381 gallons / 8643.99 gallons imperial / 39296.34 liters |
