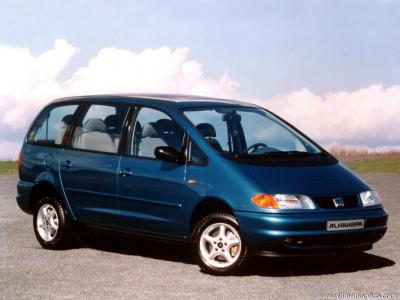

Seat Alhambra 2.0i Specs

(1996 - 2000) - Technical Specifications for Years 1996, 1997, 1998, 1999, 2000

Compare with another car

More pictures

With a fuel consumption of 9.9 litres/100km - 29 mpg UK - 24 mpg US (Average), 0 to 100 km/h (62mph) in 14.9 seconds, a maximum top speed of 110 mph (177 km/h), a curb weight of 3503 lbs (1589 kgs), the Alhambra 2.0i has a naturally-aspirated Inline 4 cylinder engine, Petrol motor, with the engine code ADY.
This engine produces a maximum power of 116 PS (114 bhp - 85 kW) at 5000 rpm and a maximum torque of 170 Nm (125 lb.ft) at 2400 rpm. The power is transmitted to the road by the front wheel drive (FWD) with a 5 speed Manual gearbox.
On the topic of chassis details responsible for road holding, handling behavior and ride comfort, the Alhambra has Independent. McPherson. coil springs. anti-roll bar front suspension and Independent transverse arms. coil springs. Anti roll bar rear suspension. Stock tire sizes are 195 / 65 on 15 inch rims at the front, and 195 / 65 on 15 inch rims at the rear. For stopping power, the Alhambra 2.0i braking system includes Vented Discs at the front and Discs at the rear.
The Alhambra model is a car manufactured by Seat, sold new from year 1996 until 2000, and available after that as a used car.

Seat Alhambra 2.0i Body, Model and Production details

Generation :	Alhambra 1

Body :	-

Num. of Doors :	5 doors


Seat Alhambra 2.0i Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	ADY

Fuel type :	Petrol

Fuel System :	MPI - Siemens Simos

Engine Alignment :	Transverse

Engine size - Displacement - Engine capacity :	121.1 cu-in / 1984 cm3

Bore x Stroke :	3.25 x 3.65 inches 82.5 x 92.8 mm

Number of valves :	8 Valves

Aspiration :	N/A

Compression Ratio :	10.0

Maximum power - Output - Horsepower :	114 HP / 116 PS / 85 kW @ 5000 rpm

Maximum torque :	125 lb-ft / 170 Nm @ 2400 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	5 speed Manual


Seat Alhambra 2.0i Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined:	24 MPG 9.9 L/100 Km 29 MPG UK

Fuel Consumption - Economy - Open road:	31 MPG 7.7 L/100 Km 37 MPG UK

Fuel Consumption - Economy - City:	18 MPG 13.4 L/100 Km 21 MPG UK

Range :	439 miles / 707 Km

Fuel Tank Capacity :	18.5 gallons 70 L 15.4 UK gallons

CO2 emissions :	236 g/Km (Seat)

Seat Alhambra 2.0i Performance

Top Speed :	110 Mph / 177 Km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	14.9 s


Seat Alhambra 2.0i Size, Dimensions, Aerodynamics and Weight

Wheelbase :	111.81 inches / 284.0 cm

Length :	181.89 inches / 462.0 cm

Width :	71.26 inches / 181.0 cm

Height :	68.11 inches / 173.0 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	3503 lbs / 1589 Kg

Weight-Power Output Ratio :	13.7 kg/hp


Seat Alhambra 2.0i Interior size, Dimensions

Trunk / Boot capacity :	from 9 cu-ft / 256 L


Seat Alhambra 2.0i Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- inches / - mm)

Rear Brakes - Dics dimensions :	Discs (- inches / - mm)

Front Tyres - Rims dimensions :	195/65 R15

Rear Tyres - Rims dimensions :	195/65 R15

Front Suspension :	Independent. McPherson. coil springs. anti-roll bar

Rear Suspension :	Independent transverse arms. coil springs. Anti roll bar

What engine is in Seat Alhambra 2.0i?
The Seat Alhambra 2.0i has a Inline 4, Petrol engine with 1984 cm3 / 121.1 cu-in capacity.

How many horsepower (hp) does a 1996 Seat Alhambra 2.0i have?
The 1996 Seat Alhambra 2.0i has 116 PS / 114 bhp / 85 kW.

How much does a Seat Alhambra 2.0i weighs?
The Seat Alhambra 2.0i weighs 1589 Kg / 3503 lbs.

What is the top speed of a Seat Alhambra 2.0i?
The Seat Alhambra 2.0i top speed is 177 Km/h / 110 mph.

Is Seat Alhambra 2.0i All Wheel Drive (AWD)?
No, the Seat Alhambra 2.0i is not All Wheel Drive (AWD). It's Front Wheel Drive (FWD).
