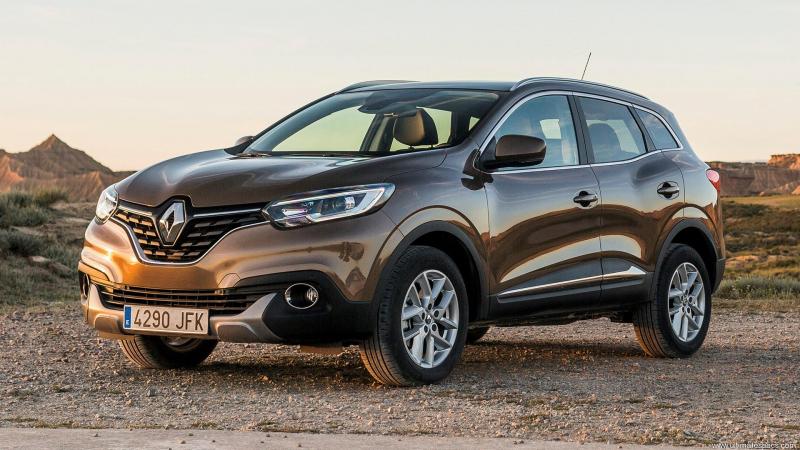

Renault Kadjar 1 Phase 1 dCi 130 X-Mod Specs

(2016 - 2018) - Technical Specifications for Years 2016, 2017, 2018

Diesel

97.5 cu-in
1598 cm³

Inline 4

129 HP
131 PS / 96 kW

236 lb-ft
320 Nm

118 Mph
190 km/h

Renault Kadjar 1 Phase 1 dCi 130 X-Mod Body, Model and Production details

Generation :	Kadjar 1 Phase 1 - 2016 New Model

Body :	TT

Num. of Doors :	5 doors


Renault Kadjar 1 Phase 1 dCi 130 X-Mod Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Diesel

Fuel System :	Direct Injection. Variable Intake

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	97.5 cu-in / 1598 cm³

Bore x Stroke :	3.15 x 3.13 inches 80.0 x 79.5 mm

Number of valves :	16 Valves

Aspiration :	Turbo (TGV) + Intercooler

Compression Ratio :	15.4

Horsepower :	129 HP / 131 PS / 96 kW @ 4000 rpm

Maximum torque :	236 lb-ft / 320 Nm @ 1750 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Manual Transmission Relations 1st Gear Ratio: 2nd Gear Ratio: 3rd Gear Ratio: 4th Gear Ratio: 5th Gear Ratio: 6th Gear Ratio:

Clutch Type :	Dry single disc clutch


Renault Kadjar 1 Phase 1 dCi 130 X-Mod Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	46 MPG 5.1 L/100 km 55 MPG UK

Fuel Consumption - Economy - Open road NEDC :	57 MPG 4.1 L/100 km 69 MPG UK

Fuel Consumption - Economy - Combined NEDC :	52 MPG 4.5 L/100 km 63 MPG UK

Range :	759 miles / 1222 km

Fuel Tank Capacity :	14.5 gallons 55 L 12.1 UK gallons

CO2 emissions :	117 g/km (Renault)

Emission standard :	Euro VI

Renault Kadjar 1 Phase 1 dCi 130 X-Mod Performance

Top Speed :	118 Mph / 190 km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	9.9 s

Acceleration 0 to 1000m :	31.9 s


Renault Kadjar 1 Phase 1 dCi 130 X-Mod Size, Dimensions, Aerodynamics and Weight

Wheelbase :	104.17 inches / 264.6 cm

Length :	175.16 inches / 444.9 cm

Width :	72.28 inches / 183.6 cm

Height :	63.27 inches / 160.7 cm

Front Axle :	61.26 inches / 155.6 cm

Rear Axle :	60.71 inches / 154.2 cm

Ground clearance :	7.87 inches / 20.0 cm

Approach angle (deg) :	18.0°

Departure angle (deg) :	28.0°

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	3285 lbs / 1490 kg

Weight/Power Output Ratio :	11.4 kg/hp


Renault Kadjar 1 Phase 1 dCi 130 X-Mod Interior size, Dimensions

Num. of Seats :	5 seats

Seat distribution :	2+3

Trunk / Boot capacity :	16.7 cu-ft / 472 L

Trunk / Boot First Row :	52.2 cu-ft / 1478 L


Renault Kadjar 1 Phase 1 dCi 130 X-Mod Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (11.65 inches / 296 mm)

Rear Brakes - Disc dimensions :	Discs (11.42 inches / 290 mm)

Front Tyres - Rims dimensions :	215/60 R17

Rear Tyres - Rims dimensions :	215/60 R17

Steering :	Rack and pinion Electric

Front Suspension :	MacPherson struts. Coil springs.

Rear Suspension :	Coil Springs. Torsion bar.
