Cavalier I Wagon Versions

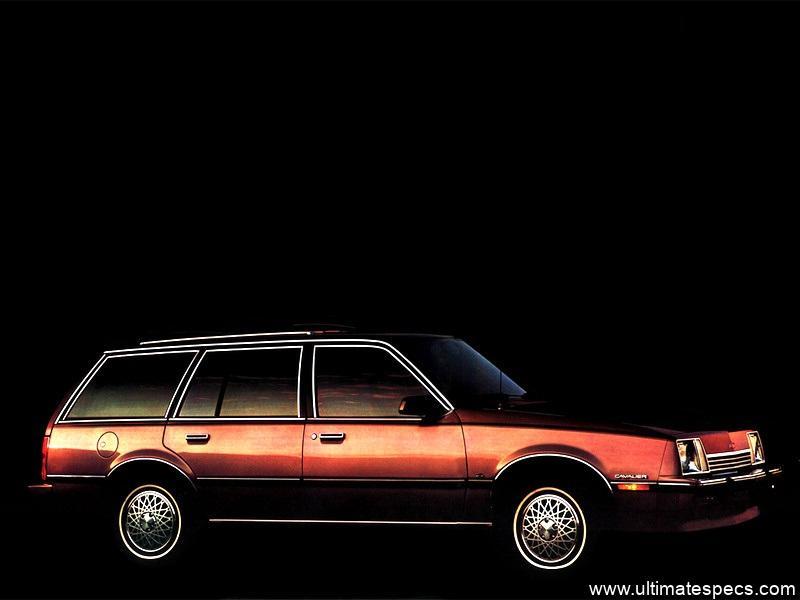

Chevrolet Cavalier I Wagon 2.8i V6 5-speed Specs

(1987 - 1988) - Technical Specifications for Years 1987, 1988

Petrol

173 cu-in
2835 cm³

V 6

125 HP
127 PS / 93 kW

118 lb-ft
160 Nm

Chevrolet Cavalier I Wagon 2.8i V6 5-speed Body, Model and Production details

Generation :	Cavalier 1st Generation

Body :	Estate

Num. of Doors :	5 doors


Chevrolet Cavalier I Wagon 2.8i V6 5-speed Engine Technical Data

Engine type - Number of cylinders :	V 6

Engine Code :	LB6

Fuel type :	Petrol

Fuel System :	MFI

Lubrication :	See oil information Engine oil capacity (with filter): 3.8 L
Engine Cooling - Capacity :	8.66 quarts / 8.2 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	173 cu-in / 2835 cm³

Bore x Stroke :	3.5 x 2.99 inches 89 x 76 mm

Aspiration :	naturally-aspirated

Compression Ratio :	8.9

Horsepower :	125 HP / 127 PS / 93 kW @ 4500 rpm

Maximum torque :	118 lb-ft / 160 Nm @ 3600 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	5 speed Manual Transmission Relations 1st Gear Ratio: 2nd Gear Ratio: 3rd Gear Ratio: 4th Gear Ratio: 5th Gear Ratio: Reverse Gear Ratio: 3.41 Final Drive Ratio: 3.61 Gearbox oilGearbox oil capacity: 2.8 L


Chevrolet Cavalier I Wagon 2.8i V6 5-speed Fuel Consumption (Economy), Emissions and Range

Fuel Tank Capacity :	13.5 gallons 51 L 11.2 UK gallons

Chevrolet Cavalier I Wagon 2.8i V6 5-speed Performance

Top Speed :	- Mph / - km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Chevrolet Cavalier I Wagon 2.8i V6 5-speed Size, Dimensions, Aerodynamics and Weight

Wheelbase :	101.22 inches / 257.1 cm

Length :	174.57 inches / 443.4 cm

Width :	66.34 inches / 168.5 cm

Height :	52.83 inches / 134.2 cm

Front Axle :	55.35 inches / 140.6 cm

Rear Axle :	55.16 inches / 140.1 cm

Ground clearance :	5.2 inches / 13.2 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2403 lbs / 1090 kg

Weight/Power Output Ratio :	8.6 kg/hp


Chevrolet Cavalier I Wagon 2.8i V6 5-speed Interior size, Dimensions

Num. of Seats :	5 seats

Seat distribution :	2+3

Trunk / Boot capacity :	64.4 cu-ft / 1824 L


Chevrolet Cavalier I Wagon 2.8i V6 5-speed Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (9.72 inches / 247 mm)

Rear Brakes - Disc dimensions :	Drums (7.87 inches / 200 mm)

Front Tyres - Rims dimensions :	175/80 R13

Rear Tyres - Rims dimensions :	175/80 R13

Front Wheels Width :	5.5"

Rear Wheels Width :	5.5"

Turning circle :	34.7 feet / 10.59 m

Front Suspension :	MacPherson struts. stabilizer

Rear Suspension :	Trailing crankarm with twisting beam
