Browse Car Specifications...

F20 LCI 1 Series 5 Doors Versions

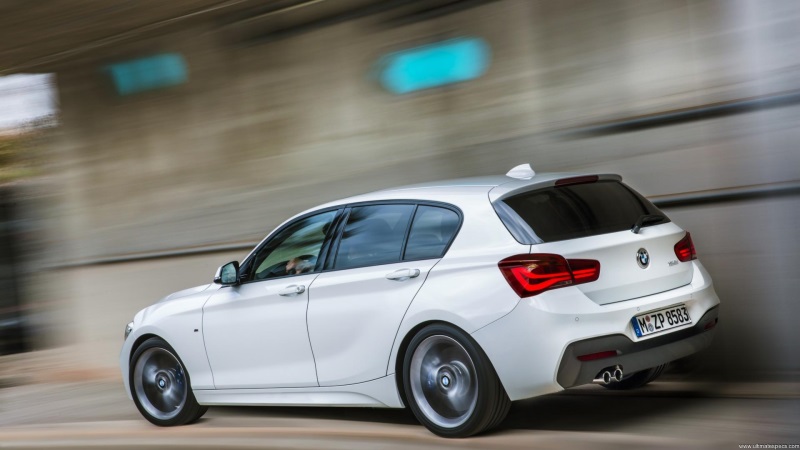

BMW F20 LCI 1 Series 5 Doors M135i Specs

(2015 - 2016) - Technical Specifications for Years 2015, 2016

Petrol

181.8 cu-in
2979 cm³

Inline 6

322 HP
326 PS / 240 kW

331 lb-ft
450 Nm

155 Mph
250 km/h

BMW F20 LCI 1 Series 5 Doors M135i Body, Model and Production details

Generation :	F2x

Body :	Turismo

Num. of Doors :	5 doors


BMW F20 LCI 1 Series 5 Doors M135i Engine Technical Data

Engine type - Number of cylinders :	Inline 6

Engine Code :	-

Fuel type :	Petrol

Fuel System :	Direct Injection.

Engine Alignment :	Longitudinal

Engine Position :	Front

Engine displacement :	181.8 cu-in / 2979 cm³

Bore x Stroke :	3.31 x 3.53 inches 84.0 x 89.6 mm

Number of valves :	24 Valves

Aspiration :	Turbo + Intercooler

Compression Ratio :	10.2

Horsepower :	322 HP / 326 PS / 240 kW @ 5800-6000 rpm

Maximum torque :	331 lb-ft / 450 Nm @ 1300-4500 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	6 speed Manual Transmission Relations 1st Gear Ratio: 2nd Gear Ratio: 3rd Gear Ratio: 4th Gear Ratio: 5th Gear Ratio: 6th Gear Ratio: Reverse Gear Ratio: 10.0


BMW F20 LCI 1 Series 5 Doors M135i Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	22 MPG 10.9 L/100 km 26 MPG UK

Fuel Consumption - Economy - Open road NEDC :	37 MPG 6.4 L/100 km 44 MPG UK

Fuel Consumption - Economy - Combined NEDC :	29 MPG 8 L/100 km 35 MPG UK

Range :	404 miles / 650 km

Fuel Tank Capacity :	13.7 gallons 52 L 11.4 UK gallons

CO2 emissions :	188 g/km (BMW)

Emission standard :	Euro VI

BMW F20 LCI 1 Series 5 Doors M135i Safety Ratings

Euro NCAP	BMW F20 LCI 1 Series 5 Doors M135i Euro NCAP Safety Rating Adult: Pedestrian: Child: Safety Assist: 91 % 63 % 83 % 86 % Tested on: 2 / 2012

BMW F20 LCI 1 Series 5 Doors M135i Performance

Top Speed :	155 Mph / 250 km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	5.1 s


BMW F20 LCI 1 Series 5 Doors M135i Size, Dimensions, Aerodynamics and Weight

Wheelbase :	105.91 inches / 269.0 cm

Length :	170.24 inches / 432.4 cm

Width :	69.49 inches / 176.5 cm

Height :	55.55 inches / 141.1 cm

Front Axle :	59.69 inches / 151.6 cm

Rear Axle :	60.39 inches / 153.4 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	3318 lbs / 1505 kg

Weight/Power Output Ratio :	4.6 kg/hp


BMW F20 LCI 1 Series 5 Doors M135i Interior size, Dimensions

Num. of Seats :	5 seats

Seat distribution :	2+3

Trunk / Boot capacity :	12.7 cu-ft / 360 L

Trunk / Boot First Row :	42.4 cu-ft / 1200 L


BMW F20 LCI 1 Series 5 Doors M135i Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- inches / - mm)

Rear Brakes - Disc dimensions :	Vented Discs (- inches / - mm)

Front Tyres - Rims dimensions :	225/45 R18

Rear Tyres - Rims dimensions :	245/35 R18

Front Wheels Width :	7.5"

Rear Wheels Width :	8.0"

Steering :	Rack and pinion Electric

Steering ratio :	14.5

Front Suspension :	MacPherson struts. Coil springs.

Rear Suspension :	Coil Springs.
