Z4 Coupe (E86) Versions

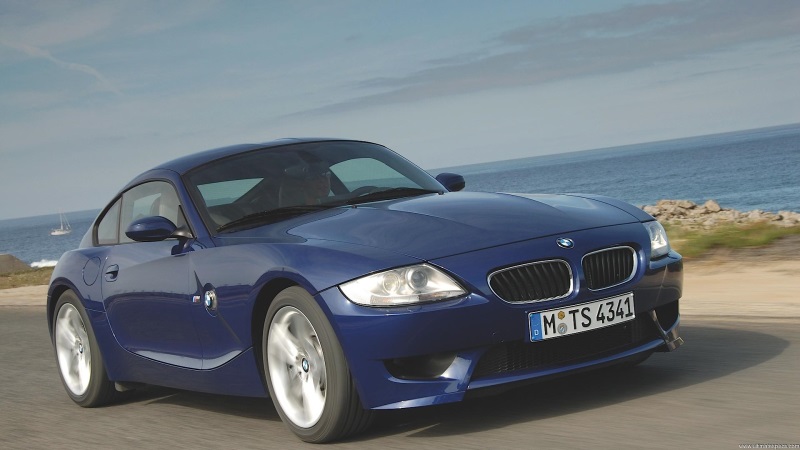

BMW Z4 Coupe (E86) M Specs

(2006 - ) Technical Specifications

Petrol

198.1 cu-in
3246 cm³

Inline 6

338 HP
343 PS / 252 kW

269 lb-ft
365 Nm

155 Mph
250 km/h

BMW Z4 Coupe (E86) M Body, Model and Production details

Generation :	E85

Body :	-

Num. of Doors :	2 doors


BMW Z4 Coupe (E86) M Engine Technical Data

Engine type - Number of cylinders :	Inline 6

Engine Code :	-

Fuel type :	Petrol

Fuel System :	MPI

Engine Alignment :	Longitudinal

Engine displacement :	198.1 cu-in / 3246 cm³

Bore x Stroke :	3.58 x 3.43 inches 91.0 x 87.0 mm

Number of valves :	24 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	11.5

Horsepower :	338 HP / 343 PS / 252 kW @ 7900 rpm

Maximum torque :	269 lb-ft / 365 Nm @ 4900 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	6 speed Manual


BMW Z4 Coupe (E86) M Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	13 MPG 18.2 L/100 km 16 MPG UK

Fuel Consumption - Economy - Open road NEDC :	27 MPG 8.6 L/100 km 33 MPG UK

Fuel Consumption - Economy - Combined NEDC :	19 MPG 12.1 L/100 km 23 MPG UK

Range :	282 miles / 454 km

Fuel Tank Capacity :	14.5 gallons 55 L 12.1 UK gallons

CO2 emissions :	292 g/km (BMW)


BMW Z4 Coupe (E86) M Size, Dimensions, Aerodynamics and Weight

Wheelbase :	98.43 inches / 250.0 cm

Length :	161.81 inches / 411.0 cm

Width :	70.08 inches / 178.0 cm

Height :	50.79 inches / 129.0 cm

Aerodynamic drag coefficient - Cx :	0.35

Curb Weight :	3075 lbs / 1395 kg

Weight/Power Output Ratio :	4.1 kg/hp


BMW Z4 Coupe (E86) M Interior size, Dimensions

Num. of Seats :	2 seats

Trunk / Boot capacity :	-


BMW Z4 Coupe (E86) M Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (13.58 inches / 345 mm)

Rear Brakes - Disc dimensions :	Vented Discs (12.91 inches / 328 mm)

Front Tyres - Rims dimensions :	225/45 R18

Rear Tyres - Rims dimensions :	255/40 R18

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Independent transverse arms. coil springs
