Spider (Type 939) Versions


Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Specs

(2010 - ) Technical Specifications

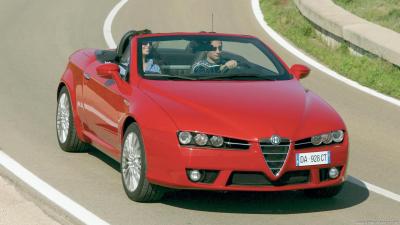

Alfa Romeo Spider (Type 939) image
With a fuel consumption of 5.4 litres/100km - 52 mpg UK - 44 mpg US (Average), 0 to 100 km/h (62mph) in 9 seconds, a maximum top speed of 135 mph (218 km/h), a curb weight of 3560 lbs (1615 kgs), the Spider (Type 939) 2.0 JTDm 170HP has a turbocharged Inline 4 cylinder engine, Diesel motor.
This engine produces a maximum power of 170 PS (168 bhp - 125 kW) at 4000 rpm and a maximum torque of 360 Nm (265 lb.ft) at 1750 rpm. The power is transmitted to the road by the front wheel drive (FWD) with a 6 speed Manual gearbox.
On the topic of chassis details responsible for road holding, handling behavior and ride comfort, the Spider (Type 939) has Independent. Coil springs. Anti-roll bar. front suspension and Independent. Coil springs. Anti-roll bar. rear suspension. Stock tire sizes are 225 / 50 on 17 inch rims at the front, and 225 / 50 on 17 inch rims at the rear. For stopping power, the Spider (Type 939) 2.0 JTDm 170HP braking system includes Vented Discs at the front and Vented Discs at the rear.
The Spider (Type 939) model is a car manufactured by Alfa Romeo, with 2 doors and 2 seats, sold new from year 2010.

Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Body, Model and Production details Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Body, Model and Production details

Generation : Spider (Tipo 939)
Body : -
Num. of Doors : 2 doors
Num. of Seats : 2 seats

Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Engine Technical Data Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Engine Technical Data

Engine type - Number of cylinders : Inline 4
Engine Code : -
Fuel type : Diesel
Engine Alignment : Transverse
Engine size - Displacement - Engine capacity : 119.4 cu-in / 1956 cm3
Bore x Stroke : 3.27 x 3.56 inches
83 x 90.4 mm
Number of valves : 16 Valves
Aspiration : Turbo (TGV) + Intercooler
Compression Ratio : 16.5
Maximum power - Output - Horsepower : 168 HP / 170 PS / 125 kW
@ 4000 rpm
Maximum torque : 265 lb-ft / 360 Nm
@ 1750 rpm
Drive wheels - Traction - Drivetrain : FWD
Transmission Gearbox - Number of speeds :

Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Fuel Consumption (Economy), Emissions and Range Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined: 44 MPG
5.4 L/100 Km
52 MPG UK
Fuel Consumption - Economy - Open road: 53 MPG
4.4 L/100 Km
64 MPG UK
Fuel Consumption - Economy - City: 33 MPG
7.1 L/100 Km
40 MPG UK
Range : 805 miles / 1296 Km
Fuel Tank Capacity : 18.5 gallons
70 L
15.4 UK gallons
CO2 emissions : 142 g/Km (Alfa Romeo)

Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Performance Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Performance

Top Speed : 135 Mph / 218 Km/h
Acceleration 0 to 100 km/h (0 to 62 mph) : 9 s

Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Size, Dimensions, Aerodynamics and Weight Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Size, Dimensions, Aerodynamics and Weight

Wheelbase : 99.53 inches / 252.8 cm
Length : 172.95 inches / 439.3 cm
Width : - inches / 183.0 cm
Height : 51.89 inches / 131.8 cm
Aerodynamic drag coefficient - Cx : -
Curb Weight : 3560 lbs / 1615 Kg
Weight-Power Output Ratio : 9.5 kg/hp
Trunk / Boot capacity :

Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Brakes, Tires, Steering and Suspension Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions : Vented Discs
(12.99 inches / 330 mm)
Rear Brakes - Dics dimensions : Vented Discs
(11.5 inches / 292 mm)
Front Tyres - Rims dimensions : 225/50 R17
Rear Tyres - Rims dimensions : 225/50 R17
Front Suspension : Independent. Coil springs. Anti-roll bar.
Rear Suspension : Independent. Coil springs. Anti-roll bar.
If you found an error in these specifications submit your correction here
What engine is in Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP?
The Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP has a Inline 4, Diesel engine with 1956 cm3 / 119.4 cu-in capacity.

How many horsepower (hp) does a 2010 Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP have?
The 2010 Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP has 170 PS / 168 bhp / 125 kW.

How much does a Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP weighs?
The Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP weighs 1615 Kg / 3560 lbs.

What is the top speed of a Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP?
The Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP top speed is 218 Km/h / 135 mph.

Is Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP All Wheel Drive (AWD)?
No, the Alfa Romeo Spider (Type 939) 2.0 JTDm 170HP is not All Wheel Drive (AWD). It's Front Wheel Drive (FWD).
