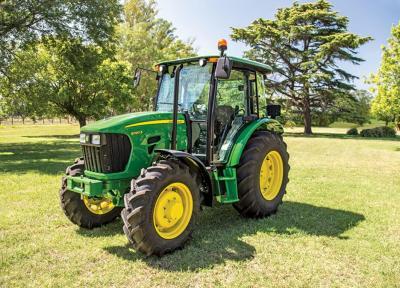

John Deere 5090EL Specs
(2018)
John Deere 5090EL General Information |
|
| Brand | John Deere |
| Model | John Deere 5090EL |
| Start year | 2018 |
| End year | - |
| Category / Type | Orchard/Vineyard tractor |
| Distributor | - |
| Manufacturer | John Deere |
| Factory | - |
| Serial Number Location | - |
| Number of total built | - |
| Original Price (in USD) | - |
John Deere 5090EL Chassis, dimensions, weight and tires |
|
| Cabin Type | Two-post foldable ROPS. |
| Wheelbase | - in |
| Length | - in |
| Fuel Capacity | 29.7 |
| Operating Weight | - lbs |
| Front Tyres - Rims dimensions | - |
| Rear Tyres - Rims dimensions | - |
| Steering type | power |
| Brakes type | hydraulic wet disc |
John Deere 5090EL Electrical System |
|
| Charging System | - |
| Charging Voltage | - volts |
| Ground | negative |
| Charging Amperage | - A |
| Number of batteries | - |
| Battery - voltage | 12 volts |
| Battery - Amp / Hour | - Ah |
| Battery - Cold Cranking Amperage | - A |
| Battery - Group | - |
| Engine Starter - voltage | 12 v |
John Deere 5090EL Engine and Transmission Technical Data |
|
| Number of cylinders | 4-cylinder |
| Fuel Type | turbocharged diesel |
| Engine Code | John Deere PowerTech 4045 |
| Engine size - Displacement - Engine capacity | 276 ci |
| Bore x Stroke | 4.19x5.00 |
| Compression Ratio | - |
| Maximum power - Output - Horsepower | - hp @ 90 rpm |
| Engine Cooling Type | liquid-cooled |
| Engine Air Filter / Cleaner | - |
| Transmission Type | power shuttle PowrReverser |
| Transmission / Gearbox gears | 24 forward and 12 reverse |
| Transmission Clutch | wet disc |
| Drive wheels - Traction - Drivetrain | 4x4 MFWD 4WD |
John Deere 5090EL PTO - Power Take-Off |
|
| Rear PTO Type | independent |
| Rear PTO Power (Tested) | 75 hp ( - hp) |
| Rear PTO RPM | 540/540E (1.375) |
John Deere 5090EL Drawbar |
|
| Drawbar Power (Tested) | - hp ( - hp) |
John Deere 5090EL Hydraulics |
|
| Type | open center |
| Nº of valves | - |
| Pump flow | 22.5 gpm |
| Steering flow | - gpm |
