Yamaha YBR125 Custom Specs

(2012)

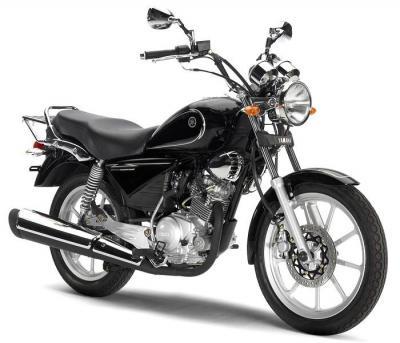

Yamaha YBR125 Custom image
The Yamaha YBR125 Custom model is a Custom / cruiser bike manufactured by Yamaha . In this version sold from year 2012 , the dry weight is and it is equipped with a Single cylinder, four-stroke motor. The engine produces a maximum peak output power of 10.06 HP (7.3 kW) @ 7800 RPM and a maximum torque of 9.60 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 6000 RPM . With this drive-train, the Yamaha YBR125 Custom is capable of reaching a maximum top speed of . On the topic of chassis characteristics, responsible for road holding, handling behavior and ride comfort, the Yamaha YBR125 Custom has a Diamond Shaped, steel frame with front suspension being Telescopic forks and at the rear, it is equipped with Link suspension . Stock tire sizes are 3.00-18 on the front, and 3.50-16 on the rear. As for stopping power, the Yamaha YBR125 Custom braking system includes Double disc. Hydraulic size 245 mm (9.6 inches) at the front and Expanding brake (drum brake) size 130 mm (5.1 inches) at the back.

Yamaha YBR125 Custom General Information

Brand Yamaha
Model Yamaha YBR125 Custom
Start year 2012
Year 2012
Category Custom / cruiser
Factory Warranty (Years / miles)

Yamaha YBR125 Custom Dimensions, Aerodynamics and weight

Frame type Diamond Shaped, steel
Seat details
Wheelbase 1,290 mm (50.8 inches)
Length 2,055 mm (80.9 inches)
Width 845 mm (33.3 inches)
Height
Seat Height 760 mm (29.9 inches) If adjustable, lowest setting.
Alternate Seat Height
Ground Clearance 140 mm (5.5 inches)
Trail size 90 mm (3.5 inches)
Wheels details
Front Tyres - Rims dimensions 3.00-18
Rear Tyres - Rims dimensions 3.50-16
Front brakes Double disc. Hydraulic
Rear brakes Expanding brake (drum brake)
Front Brakes Dimensions - Disc Dimensions 245 mm (9.6 inches)
Rear Brakes Dimensions - Disc Dimensions 130 mm (5.1 inches)
Curb Weight (including fluids) 129.0 kg (284.4 pounds)
Dry Weight
Front Percentage of Weight
Rear Percentage of Weight
Weight-Power Output Ratio :
Fuel Tank Capacity 12.00 litres (3.17 gallons)
Reserve Fuel Capacity
Carrying Details and Capacity
Front Suspension Telescopic forks
Front Suspension Travel 120 mm (4.7 inches)
Rear Suspension Link suspension
Rear Suspension Travel 105 mm (4.1 inches)

Yamaha YBR125 Custom Engine and Transmission Technical Data

Engine type - Number of cylinders Single cylinder, four-stroke
Engine details Forward-inclined single cylinder
Fuel system Injection
Engine size - Displacement - Engine capacity 124.00 ccm (7.57 cubic inches)
Bore x Stroke 54.0 x 54.0 mm (2.1 x 2.1 inches)
Compression Ratio 10.0:1
Number of valves per cylinder
Camshaft Valvetrain Configuration SOHC
Maximum power - Output - Horsepower 10.06 HP (7.3 kW) @ 7800 RPM
Maximum torque 9.60 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 6000 RPM
Engine Maximum RPM
Cooling system Air
Lubrication system
Engine oil capacity 1.20 litres (1.27 quarts)
Exhaust system Chrome-plated slash-cut muffler
Gearbox 5-speed
Transmission type, final drive ratio
Clutch type Wet, multiple-disc coil spring
Driveline

Yamaha YBR125 Custom Performance

Top Speed
Acceleration 0 to 100 km/h (0 to 62 mph)
Acceleration 0 to 400m (1/4 mile)
Recuperation 60 to 140 km/h in highest gear
Fuel Consumption - MPG - Economy - Efficiency
CO2 emissions
Emissions

Yamaha YBR125 Custom Electrical Systems, Ignition and Equipment

Ignition Type
Electrical Details
Starter Type Electric & kick
Instruments
Lights
How much horsepower does a Yamaha YBR125 Custom have?
The Yamaha YBR125 Custom has 10.06 HP (7.3 kW) @ 7800 RPM.

How tall (seat height) is a Yamaha YBR125 Custom?
The Yamaha YBR125 Custom seat height is 760 mm (29.9 inches) If adjustable, lowest setting.

How many gears does a Yamaha YBR125 Custom have?
The Yamaha YBR125 Custom have 5 gears.
