Volkswagen Tiguan 2021 2.0 TDI 122HP Specs

(2020 - ) - Technical Specifications for Years 2020, 2021, 2022, 2023

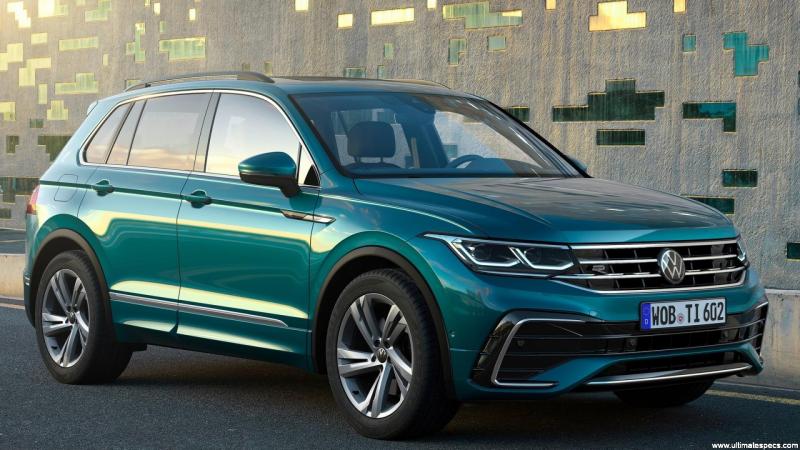

Volkswagen Tiguan 2021 image
With a fuel consumption of 4.5 litres/100km - 63 mpg UK - 52 mpg US (Average), 0 to 100 km/h (62mph) in 10.9 seconds, a maximum top speed of 119 mph (191 km/h), a curb weight of 3523 lbs (1598 kgs), the Tiguan 2021 2.0 TDI 122HP has a turbocharged Inline 4 cylinder engine, Diesel motor, with the engine code DTR.
This engine produces a maximum power of 122 PS (120 bhp - 90 kW) at 3500 rpm and a maximum torque of 320 Nm (236 lb.ft) at 1600 rpm. The power is transmitted to the road by the front wheel drive (FWD) with a 6 speed Manual gearbox.
On the topic of chassis details responsible for road holding, handling behavior and ride comfort, the Tiguan 2021 has Independent McPherson. Coil Springs. Anti-roll bar. front suspension and Multilink. Coil Springs. Anti-roll bar. rear suspension. Stock tire sizes are 215 / 65 on 17 inch rims at the front, and 215 / 65 on 17 inch rims at the rear. For stopping power, the Tiguan 2021 2.0 TDI 122HP braking system includes Vented Discs at the front and Discs at the rear.
The Tiguan 2021 model is a SUV car manufactured by Volkswagen, with 5 doors and 5 seats, sold new from year 2020.

Volkswagen Tiguan 2021 2.0 TDI 122HP Body, Model and Production details Volkswagen Tiguan 2021 2.0 TDI 122HP Body, Model and Production details

Generation : Tiguan 2 - 2021 Facelift
Body : SUV
Num. of Doors : 5 doors
Num. of Seats : 5 seats

Volkswagen Tiguan 2021 2.0 TDI 122HP Engine Technical Data Volkswagen Tiguan 2021 2.0 TDI 122HP Engine Technical Data

Engine type - Number of cylinders : Inline 4
Engine Code : DTR
Fuel type : Diesel
Fuel System : Common Rail
Engine Alignment : Transverse
Engine Position : Front
Engine size - Displacement - Engine capacity : 120.1 cu-in / 1968 cm3
Bore x Stroke : 3.19 x 3.76 inches
81.0 x 95.5 mm
Number of valves : 16 Valves
Aspiration : Turbo Intercooler
Compression Ratio : 16.5
Maximum power - Output - Horsepower : 120 HP / 122 PS / 90 kW
@ 3500 rpm
Maximum torque : 236 lb-ft / 320 Nm
@ 1600 rpm
Drive wheels - Traction - Drivetrain : FWD
Transmission Gearbox - Number of speeds :

Volkswagen Tiguan 2021 2.0 TDI 122HP Fuel Consumption (Economy), Emissions and Range Volkswagen Tiguan 2021 2.0 TDI 122HP Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined: 52 MPG
4.5 L/100 Km
63 MPG UK
Fuel Consumption - Economy - Open road: 62 MPG
3.8 L/100 Km
74 MPG UK
Fuel Consumption - Economy - City: 41 MPG
5.7 L/100 Km
50 MPG UK
Fuel Consumption - Economy - Low WLTP: 38 MPG
6.2 L/100 Km
46 MPG UK
Fuel Consumption - Economy - Medium WLTP: 49 MPG
4.8 L/100 Km
59 MPG UK
Fuel Consumption - Economy - High WLTP: 55 MPG
4.3 L/100 Km
66 MPG UK
Fuel Consumption - Economy - Extra high WLTP: 44 MPG
5.4 L/100 Km
52 MPG UK
Fuel Consumption - Economy - Combined WLTP: 47 MPG
5 L/100 Km
56 MPG UK
Range : 800 miles / 1288 Km
Range (WLTP): 721 miles / 1160 Km
Fuel Tank Capacity : 15.3 gallons
58 L
12.8 UK gallons
CO2 emissions : 119 g/Km (Volkswagen)
CO2 emissions WLTP : 132 g/Km (Volkswagen)
Emission standard : Euro 6d - WLTP
Catalytic converter : Particle Filter (with SCR cat.)

Volkswagen Tiguan 2021 2.0 TDI 122HP Performance Volkswagen Tiguan 2021 2.0 TDI 122HP Performance

Top Speed : 119 Mph / 191 Km/h
Acceleration 0 to 100 km/h (0 to 62 mph) : 10.9 s

Volkswagen Tiguan 2021 2.0 TDI 122HP Size, Dimensions, Aerodynamics and Weight Volkswagen Tiguan 2021 2.0 TDI 122HP Size, Dimensions, Aerodynamics and Weight

Wheelbase : 105.43 inches / 267.8 cm
Length : 177.52 inches / 450.9 cm
Width : 72.4 inches / 183.9 cm
Width with mirrors : 82.64 inches / 209.9 cm
Height : 65.94 inches / 167.5 cm
Front Axle : 62.4 inches / 158.5 cm
Rear Axle : 62.05 inches / 157.6 cm
Ground clearance : 7.52 inches / 19.1 cm
Approach angle (deg) : 16.9°
Breakover angle (deg) : 15.3°
Departure angle (deg) : 17.0°
Max. Towing Capacity Weight : 3968 lbs / 1800 Kg
Aerodynamic drag coefficient - Cx : -
Curb Weight : 3523 lbs / 1598 Kg
Weight-Power Output Ratio : 13.1 kg/hp
Trunk / Boot capacity : 21.7 cu-ft / 615 L
Trunk / Boot First Row : 58.4 cu-ft / 1655 L

Volkswagen Tiguan 2021 2.0 TDI 122HP Brakes, Tires, Steering and Suspension Volkswagen Tiguan 2021 2.0 TDI 122HP Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions : Vented Discs
(- inches / - mm)
Rear Brakes - Dics dimensions : Discs
(- inches / - mm)
Front Tyres - Rims dimensions : 215/65 R17
Rear Tyres - Rims dimensions : 215/65 R17
Turning circle : 37.7 feet / 11.5 m
Front Suspension : Independent McPherson. Coil Springs. Anti-roll bar.
Rear Suspension : Multilink. Coil Springs. Anti-roll bar.
If you found an error in these specifications submit your correction here
What engine is in Volkswagen Tiguan 2021 2.0 TDI 122HP?
The Volkswagen Tiguan 2021 2.0 TDI 122HP has a Inline 4, Diesel engine with 1968 cm3 / 120.1 cu-in capacity.

How many horsepower (hp) does a 2020 Volkswagen Tiguan 2021 2.0 TDI 122HP have?
The 2020 Volkswagen Tiguan 2021 2.0 TDI 122HP has 122 PS / 120 bhp / 90 kW.

How much does a Volkswagen Tiguan 2021 2.0 TDI 122HP weighs?
The Volkswagen Tiguan 2021 2.0 TDI 122HP weighs 1598 Kg / 3523 lbs.

What is the top speed of a Volkswagen Tiguan 2021 2.0 TDI 122HP?
The Volkswagen Tiguan 2021 2.0 TDI 122HP top speed is 191 Km/h / 119 mph.

Is Volkswagen Tiguan 2021 2.0 TDI 122HP All Wheel Drive (AWD)?
No, the Volkswagen Tiguan 2021 2.0 TDI 122HP is not All Wheel Drive (AWD). It's Front Wheel Drive (FWD).
