Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 Specs

(2016 - 2020) - Technical Specifications for Years 2016, 2017, 2018, 2019, 2020

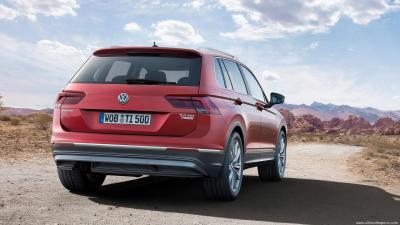

Volkswagen Tiguan 2016 image
With a fuel consumption of 5.7 litres/100km - 50 mpg UK - 41 mpg US (Average), 0 to 100 km/h (62mph) in 7.9 seconds, a maximum top speed of 132 mph (212 km/h), the Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 has a turbocharged Inline 4 cylinder engine, Diesel motor.
This engine produces a maximum power of 190 PS (187 bhp - 140 kW) at 3500-4000 rpm and a maximum torque of 400 Nm (295 lb.ft) at 1900-3300 rpm. The power is transmitted to the road by the all wheel drive (AWD) with a 7 speed Automatic gearbox.
On the topic of chassis details responsible for road holding, handling behavior and ride comfort, the Tiguan 2016 has McPherson struts. Coil springs. front suspension and Coil springs. rear suspension. Stock tire sizes are 235 / 55 on 18 inch rims at the front, and 235 / 55 on 18 inch rims at the rear. For stopping power, the Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 braking system includes Vented Discs at the front and Discs at the rear.
The Tiguan 2016 model is a TT car manufactured by Volkswagen, with 5 doors and 5 seats, sold new from year 2016 until 2020, and available after that as a used car.

Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 Engine Technical Data Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 Engine Technical Data

Engine type - Number of cylinders : Inline 4
Engine Code : -
Fuel type : Diesel
Fuel System : Direct Injection. Variable Intake
Engine Alignment : Transverse
Engine Position : Front
Engine size - Displacement - Engine capacity : 120.1 cu-in / 1968 cm3
Bore x Stroke : 3.19 x 3.76 inches
81.0 x 95.5 mm
Number of valves : 16 Valves
Aspiration : Turbo (TGV) + Intercooler
Maximum power - Output - Horsepower : 187 HP / 190 PS / 140 kW
@ 3500-4000 rpm
Maximum torque : 295 lb-ft / 400 Nm
@ 1900-3300 rpm
Drive wheels - Traction - Drivetrain : AWD
Transmission Gearbox - Number of speeds :

Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 Fuel Consumption (Economy), Emissions and Range Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined: 41 MPG
5.7 L/100 Km
50 MPG UK
Fuel Consumption - Economy - Open road: 45 MPG
5.2 L/100 Km
54 MPG UK
Fuel Consumption - Economy - City: 36 MPG
6.5 L/100 Km
43 MPG UK
Range : 654 miles / 1052 Km
Fuel Tank Capacity : 15.9 gallons
60 L
13.2 UK gallons
CO2 emissions : 149 g/Km (Volkswagen)

Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 Performance Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 Performance

Top Speed : 132 Mph / 212 Km/h
Acceleration 0 to 100 km/h (0 to 62 mph) : 7.9 s

Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 Size, Dimensions, Aerodynamics and Weight Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 Size, Dimensions, Aerodynamics and Weight

Body : TT
Num. of Doors : 5
Wheelbase : 105.55 inches / 268.1 cm
Length : 176.61 inches / 448.6 cm
Width : 72.4 inches / 183.9 cm
Height : 64.69 inches / 164.3 cm
Ground clearance : 7.87 inches / 20.0 cm
Approach angle (deg) : 17.1°
Breakover angle (deg) : 14.9°
Departure angle (deg) : 17.7°
Num. of Seats : 5
Aerodynamic drag coefficient - Cx : -
Front Brakes - Disc dimensions : Vented Discs
(- inches / - mm)
Rear Brakes - Dics dimensions : Discs
(- inches / - mm)
Front Tyres - Rims dimensions : 235/55 R18
Rear Tyres - Rims dimensions : 235/55 R18
Front Wheels Width : 7,0"
Rear Wheels Width : 7,0"
Curb Weight : - lbs / - Kg
Trunk / Boot capacity : 18.4 cu-ft / 520 L
Steering : Rack and pinion Electric
Front Suspension : McPherson struts. Coil springs.
Rear Suspension : Coil springs.
If you found an error in these specifications submit your correction here
What engine is in Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7?
The Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 has a Inline 4, Diesel engine with 1968 cm3 / 120.1 cu-in capacity.

How many horsepower (hp) does a 2016 Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 have?
The 2016 Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 has 190 PS / 187 bhp / 140 kW.

What is the top speed of a Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7?
The Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 top speed is 212 Km/h / 132 mph.

Is Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 All Wheel Drive (AWD)?
Yes, the Volkswagen Tiguan 2016 2.0 TDI 190HP 4Motion DSG-7 is All Wheel Drive (AWD).
