Ford Galaxy II Titanium 2.0 TDCi 140HP Specs

(2010 - 2013) - Technical Specifications for Years 2010, 2011, 2012, 2013

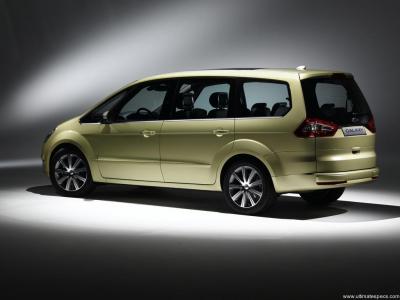

Ford Galaxy II image
With a fuel consumption of 5.7 litres/100km - 50 mpg UK - 41 mpg US (Average), 0 to 100 km/h (62mph) in 10.6 seconds, a maximum top speed of 120 mph (193 km/h), a curb weight of 3821 lbs (1733 kgs), the Galaxy II Titanium 2.0 TDCi 140HP has a turbocharged Inline 4 cylinder engine, Diesel motor.
This engine produces a maximum power of 140 PS (138 bhp - 103 kW) at 4000 rpm and a maximum torque of 320 Nm (236 lb.ft) at 1750-2750 rpm. The power is transmitted to the road by the front wheel drive (FWD) with a 6 speed Manual gearbox.
On the topic of chassis details responsible for road holding, handling behavior and ride comfort, the Galaxy II has Independent. McPherson struts. Coil springs. Anti-roll bar. front suspension and Independent. Coil springs. Anti-roll bar. rear suspension. Stock tire sizes are 225 / 50 on 17 inch rims at the front, and 225 / 50 on 17 inch rims at the rear. For stopping power, the Galaxy II Titanium 2.0 TDCi 140HP braking system includes Vented Discs at the front and Discs at the rear.
The Galaxy II model is a car manufactured by Ford, with 5 doors and 7 seats, sold new from year 2010 until 2013, and available after that as a used car.

Ford Galaxy II Titanium 2.0 TDCi 140HP Body, Model and Production details Ford Galaxy II Titanium 2.0 TDCi 140HP Body, Model and Production details

Generation : Galaxy 2
Body : -
Num. of Doors : 5 doors

Ford Galaxy II Titanium 2.0 TDCi 140HP Engine Technical Data Ford Galaxy II Titanium 2.0 TDCi 140HP Engine Technical Data

Engine type - Number of cylinders : Inline 4
Engine Code : -
Fuel type : Diesel
Engine Alignment : Transverse
Engine size - Displacement - Engine capacity : 121.9 cu-in / 1997 cm3
Bore x Stroke : 3.35 x 3.46 inches
85 x 88 mm
Number of valves : 16 Valves
Aspiration : Turbo (TGV) + Intercooler
Compression Ratio : 17.9
Maximum power - Output - Horsepower : 138 HP / 140 PS / 103 kW
@ 4000 rpm
Maximum torque : 236 lb-ft / 320 Nm
@ 1750-2750 rpm
Drive wheels - Traction - Drivetrain : FWD
Transmission Gearbox - Number of speeds :

Ford Galaxy II Titanium 2.0 TDCi 140HP Fuel Consumption (Economy), Emissions and Range Ford Galaxy II Titanium 2.0 TDCi 140HP Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined: 41 MPG
5.7 L/100 Km
50 MPG UK
Fuel Consumption - Economy - Open road: 48 MPG
4.9 L/100 Km
58 MPG UK
Fuel Consumption - Economy - City: 33 MPG
7.2 L/100 Km
39 MPG UK
Range : 763 miles / 1228 Km
Fuel Tank Capacity : 18.5 gallons
70 L
15.4 UK gallons
CO2 emissions : 152 g/Km (Ford)

Ford Galaxy II Titanium 2.0 TDCi 140HP Safety Ratings

Euro NCAP

Ford Galaxy II Titanium 2.0 TDCi 140HP Performance Ford Galaxy II Titanium 2.0 TDCi 140HP Performance

Top Speed : 120 Mph / 193 Km/h
Acceleration 0 to 100 km/h (0 to 62 mph) : 10.6 s

Ford Galaxy II Titanium 2.0 TDCi 140HP Size, Dimensions, Aerodynamics and Weight Ford Galaxy II Titanium 2.0 TDCi 140HP Size, Dimensions, Aerodynamics and Weight

Wheelbase : 112.2 inches / 285.0 cm
Length : 189.72 inches / 481.9 cm
Width : - inches / 188.4 cm
Height : 71.3 inches / 181.1 cm
Aerodynamic drag coefficient - Cx : 0.314
Curb Weight : 3821 lbs / 1733 Kg
Weight-Power Output Ratio : 12.4 kg/hp

Ford Galaxy II Titanium 2.0 TDCi 140HP Interior size, Dimensions Ford Galaxy II Titanium 2.0 TDCi 140HP Interior size, Dimensions

Num. of Seats : 7 seats
Trunk / Boot capacity :

Ford Galaxy II Titanium 2.0 TDCi 140HP Brakes, Tires, Steering and Suspension Ford Galaxy II Titanium 2.0 TDCi 140HP Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions : Vented Discs
(11.81 inches / 300 mm)
Rear Brakes - Dics dimensions : Discs
(11.02 inches / 280 mm)
Front Tyres - Rims dimensions : 225/50 R17
Rear Tyres - Rims dimensions : 225/50 R17
Front Suspension : Independent. McPherson struts. Coil springs. Anti-roll bar.
Rear Suspension : Independent. Coil springs. Anti-roll bar.
If you found an error in these specifications submit your correction here
What engine is in Ford Galaxy II Titanium 2.0 TDCi 140HP?
The Ford Galaxy II Titanium 2.0 TDCi 140HP has a Inline 4, Diesel engine with 1997 cm3 / 121.9 cu-in capacity.

How many horsepower (hp) does a 2010 Ford Galaxy II Titanium 2.0 TDCi 140HP have?
The 2010 Ford Galaxy II Titanium 2.0 TDCi 140HP has 140 PS / 138 bhp / 103 kW.

How much does a Ford Galaxy II Titanium 2.0 TDCi 140HP weighs?
The Ford Galaxy II Titanium 2.0 TDCi 140HP weighs 1733 Kg / 3821 lbs.

What is the top speed of a Ford Galaxy II Titanium 2.0 TDCi 140HP?
The Ford Galaxy II Titanium 2.0 TDCi 140HP top speed is 193 Km/h / 120 mph.

Is Ford Galaxy II Titanium 2.0 TDCi 140HP All Wheel Drive (AWD)?
No, the Ford Galaxy II Titanium 2.0 TDCi 140HP is not All Wheel Drive (AWD). It's Front Wheel Drive (FWD).
