E81 1 Series 3 door Versions


BMW E81 1 Series 3 door 123d Specs

(2010 - ) Technical Specifications

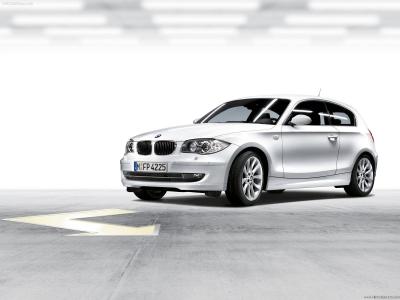

BMW E81 1 Series 3 door image
With a fuel consumption of 5.1 litres/100km - 55 mpg UK - 46 mpg US (Average), 0 to 100 km/h (62mph) in 6.9 seconds, a maximum top speed of 148 mph (238 km/h), a curb weight of 3274 lbs (1485 kgs), the E81 1 Series 3 door 123d has a turbocharged Inline 4 cylinder engine, Diesel motor.
This engine produces a maximum power of 204 PS (201 bhp - 150 kW) at 4400 rpm and a maximum torque of 400 Nm (295 lb.ft) at 2000-2250 rpm. The power is transmitted to the road by the rear wheel drive (RWD) with a 6 speed Manual gearbox.
On the topic of chassis details responsible for road holding, handling behavior and ride comfort, the E81 1 Series 3 door has Independent. McPherson struts. Coil springs. Anti-roll bar. front suspension and Independent. Coil springs. Anti-roll bar. rear suspension. Stock tire sizes are 205 / 50 on 17 inch rims at the front, and 205 / 50 on 17 inch rims at the rear. For stopping power, the E81 1 Series 3 door 123d braking system includes Vented Discs at the front and Discs at the rear.
The E81 1 Series 3 door model is a car manufactured by BMW, with 3 doors and 5 seats, sold new from year 2010.

BMW E81 1 Series 3 door 123d Body, Model and Production details BMW E81 1 Series 3 door 123d Body, Model and Production details

Generation : E8x
Body : -
Num. of Doors : 3 doors

BMW E81 1 Series 3 door 123d Engine Technical Data BMW E81 1 Series 3 door 123d Engine Technical Data

Engine type - Number of cylinders : Inline 4
Engine Code : -
Fuel type : Diesel
Engine Alignment : Longitudinal
Engine size - Displacement - Engine capacity : 121.7 cu-in / 1995 cm3
Bore x Stroke : 3.31 x 3.54 inches
84 x 90 mm
Number of valves : 16 Valves
Aspiration : Turbo (TGV) + Intercooler
Compression Ratio : 16
Maximum power - Output - Horsepower : 201 HP / 204 PS / 150 kW
@ 4400 rpm
Maximum torque : 295 lb-ft / 400 Nm
@ 2000-2250 rpm
Drive wheels - Traction - Drivetrain : RWD
Transmission Gearbox - Number of speeds :

BMW E81 1 Series 3 door 123d Fuel Consumption (Economy), Emissions and Range BMW E81 1 Series 3 door 123d Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined: 46 MPG
5.1 L/100 Km
55 MPG UK
Fuel Consumption - Economy - Open road: 53 MPG
4.4 L/100 Km
64 MPG UK
Fuel Consumption - Economy - City: 37 MPG
6.4 L/100 Km
44 MPG UK
Range : 622 miles / 1000 Km
Fuel Tank Capacity : 13.5 gallons
51 L
11.2 UK gallons
CO2 emissions : 135 g/Km (BMW)

BMW E81 1 Series 3 door 123d Safety Ratings

Euro NCAP

BMW E81 1 Series 3 door 123d Performance BMW E81 1 Series 3 door 123d Performance

Top Speed : 148 Mph / 238 Km/h
Acceleration 0 to 100 km/h (0 to 62 mph) : 6.9 s
Acceleration 0 to 1000m : 27.2 s

BMW E81 1 Series 3 door 123d Size, Dimensions, Aerodynamics and Weight BMW E81 1 Series 3 door 123d Size, Dimensions, Aerodynamics and Weight

Wheelbase : 104.72 inches / 266.0 cm
Length : 166.89 inches / 423.9 cm
Width : - inches / 174.8 cm
Height : 55.94 inches / 142.1 cm
Aerodynamic drag coefficient - Cx : 0.31
Curb Weight : 3274 lbs / 1485 Kg
Weight-Power Output Ratio : 7.3 kg/hp

BMW E81 1 Series 3 door 123d Interior size, Dimensions BMW E81 1 Series 3 door 123d Interior size, Dimensions

Num. of Seats : 5 seats
Trunk / Boot capacity :

BMW E81 1 Series 3 door 123d Brakes, Tires, Steering and Suspension BMW E81 1 Series 3 door 123d Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions : Vented Discs
(12.99 inches / 330 mm)
Rear Brakes - Dics dimensions : Discs
(11.81 inches / 300 mm)
Front Tyres - Rims dimensions : 205/50 R17
Rear Tyres - Rims dimensions : 205/50 R17
Front Suspension : Independent. McPherson struts. Coil springs. Anti-roll bar.
Rear Suspension : Independent. Coil springs. Anti-roll bar.
If you found an error in these specifications submit your correction here
What engine is in BMW E81 1 Series 3 door 123d?
The BMW E81 1 Series 3 door 123d has a Inline 4, Diesel engine with 1995 cm3 / 121.7 cu-in capacity.

How many horsepower (hp) does a 2010 BMW E81 1 Series 3 door 123d have?
The 2010 BMW E81 1 Series 3 door 123d has 204 PS / 201 bhp / 150 kW.

How much does a BMW E81 1 Series 3 door 123d weighs?
The BMW E81 1 Series 3 door 123d weighs 1485 Kg / 3274 lbs.

What is the top speed of a BMW E81 1 Series 3 door 123d?
The BMW E81 1 Series 3 door 123d top speed is 238 Km/h / 148 mph.

Is BMW E81 1 Series 3 door 123d All Wheel Drive (AWD)?
No, the BMW E81 1 Series 3 door 123d is not All Wheel Drive (AWD). It's Rear Wheel Drive (RWD).
